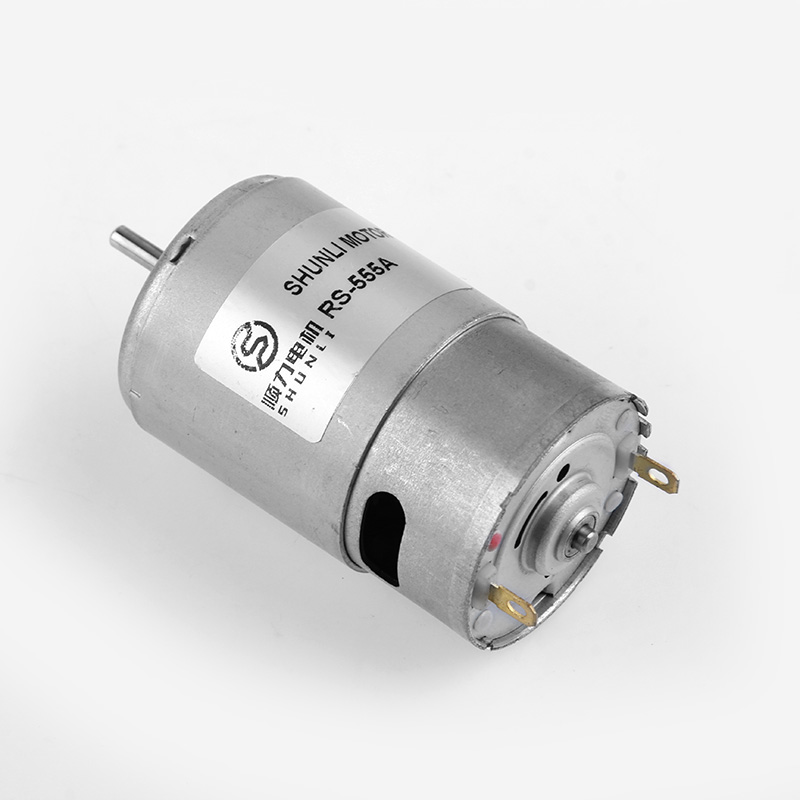

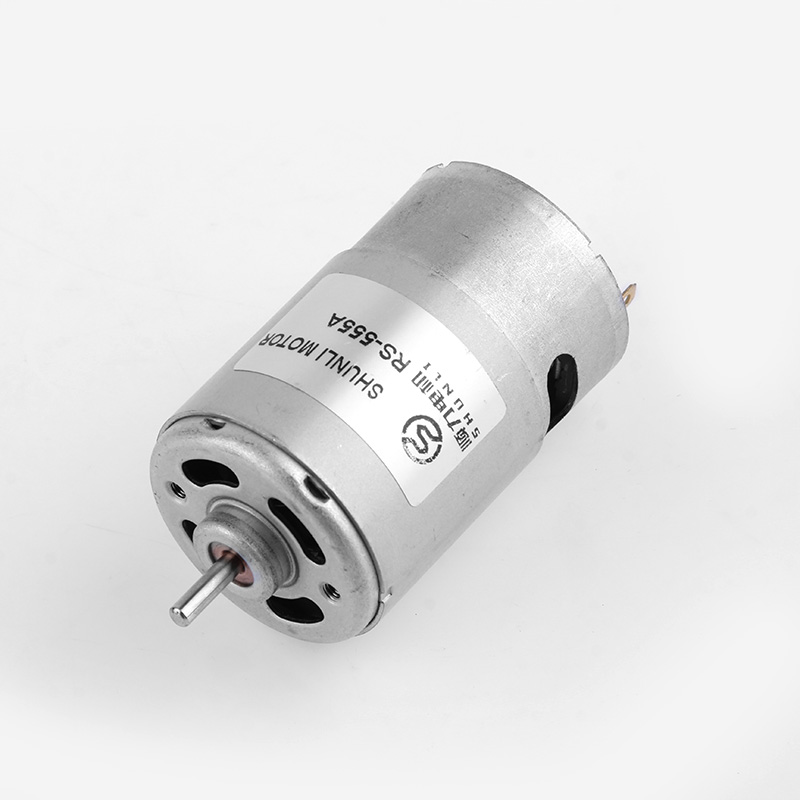

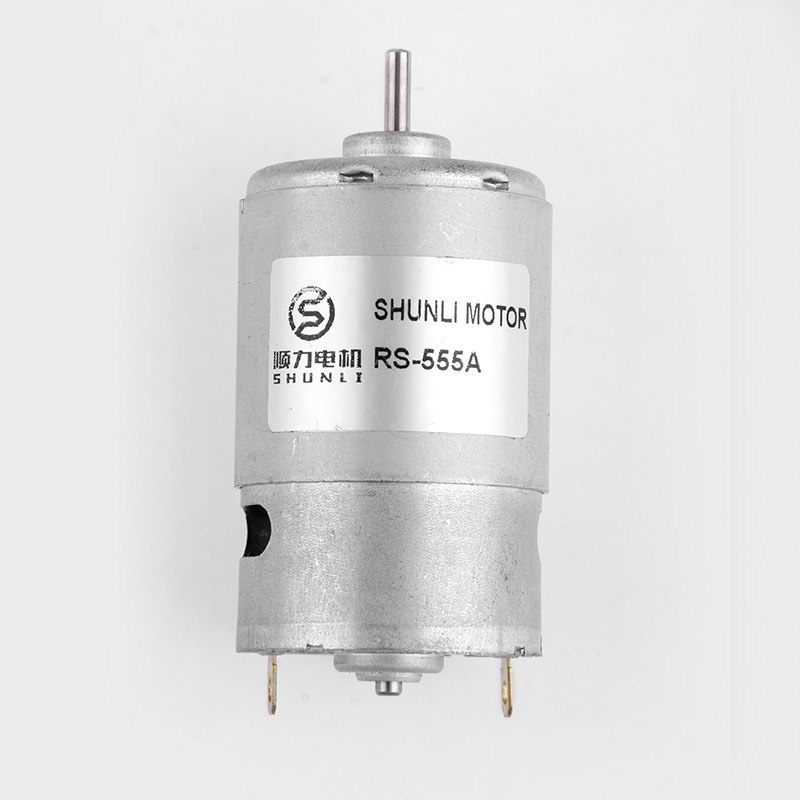

Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
1 / 4
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine

Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine

Send Inquiry

Product Description

Promotion
Small Size High Power High Rpm 12v 24v Gear Motor

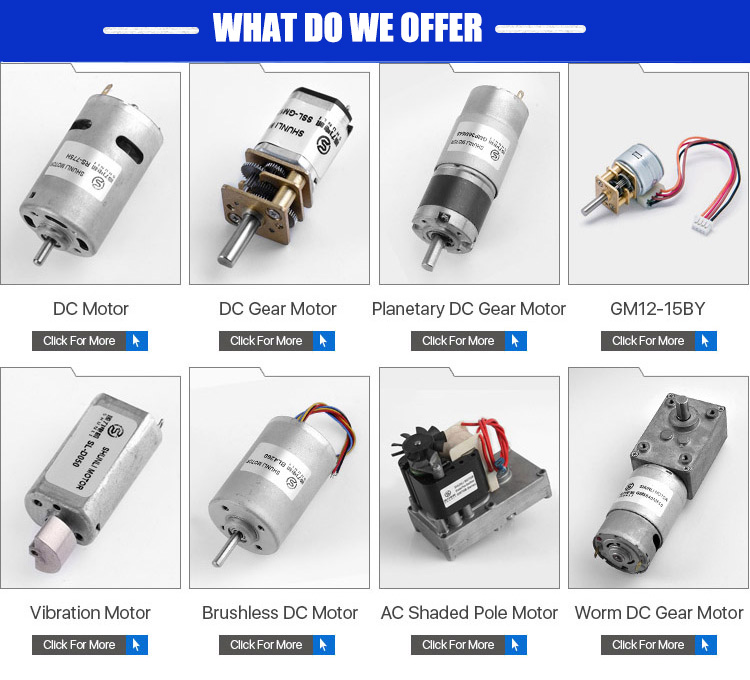

DC Gear Motor Overview

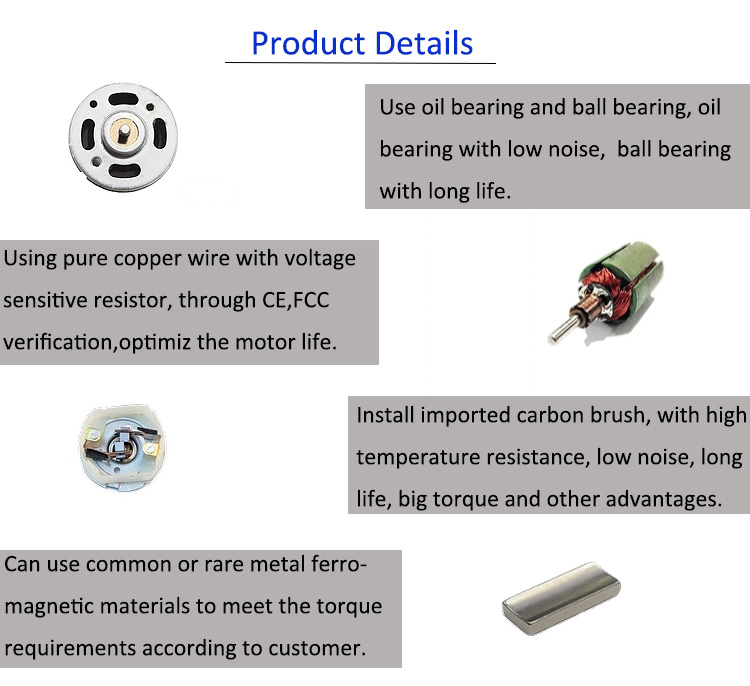

Product Description

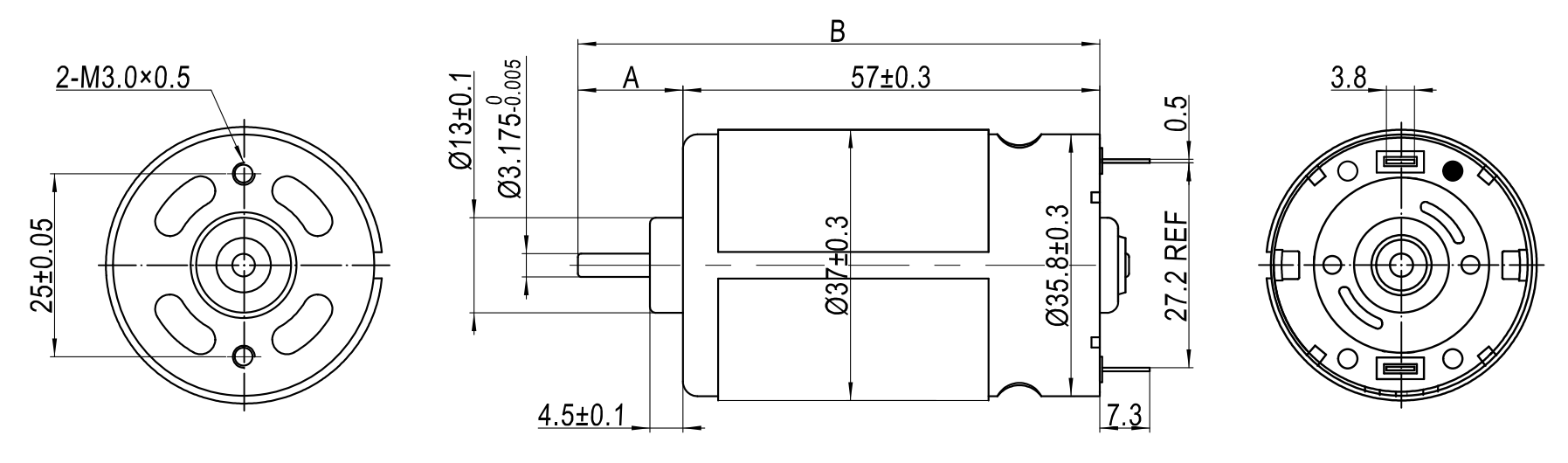

Technical Drawing of Gear Motor
PMDC MOTOR Technical Data
Model Rated Voltage(V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7 / 262 10.6 4.8 204 / 2080
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6 / 261.3 40.36 48.89 281.4 / 2870
RS-555H 3540 6.0~12.0 12VDC 7800 0.3 6708 1.84 21.9 / 223.4 15.35 11.31 156 / 1591
23100 6.0~24.0 24VDC 7000 0.14 6004 0.77 19.2 / 195.8 12.09 4.2 124.5 / 1270
Application
Motor Applications Chart Quality Guaranteed Divider
Customer Evaluation
Customer Reviews and Feedback
Certifications
Quality Standards Certificate
Technical Certification Documents
Recommend Product

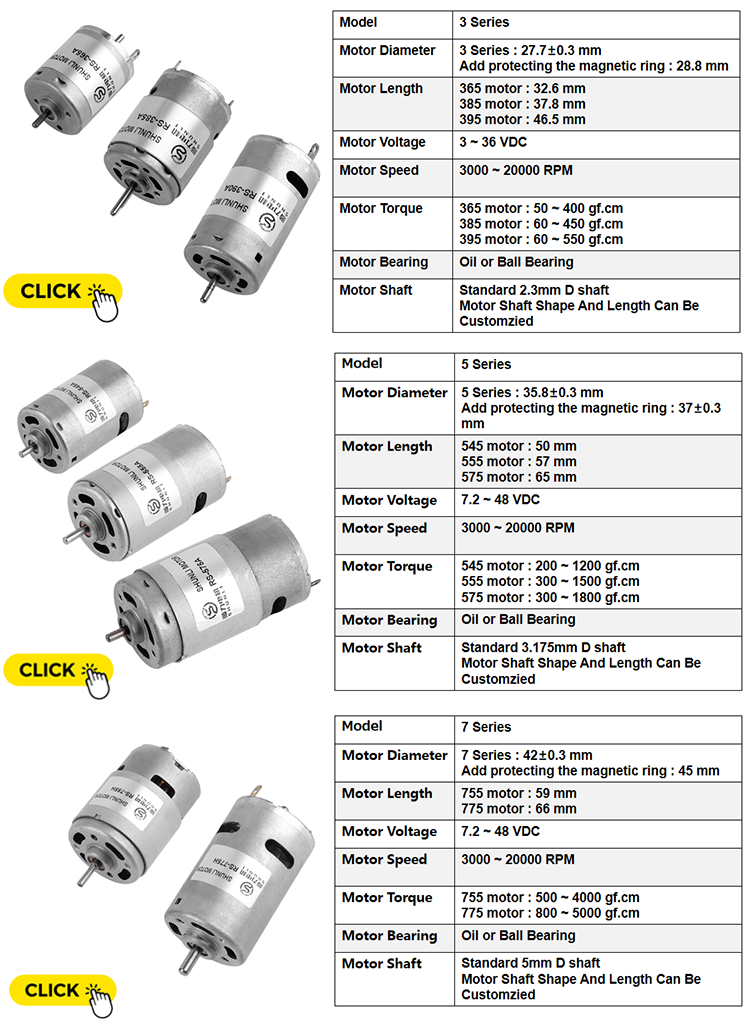

Recommended Micro Motor Models
FAQ
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional manufacturing experience.
What is the payment term for new customers?
We can draw up online assurance orders for new customers, which can be paid online with Mastercard, Visa, etc. Customers can also choose to pay with PayPal, TT, and other methods.
I cannot find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize and manufacture suitable motors according to our customers' specific technical and application requirements.
Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant industry certificates. If you require any other specific certifications, we can apply for them for you.
How is your quality control structured?
We have professional inspection personnel assigned to every process on the production line. After finishing the full motor assembly, we utilize comprehensive quality testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Can you provide samples for testing before ordering?
Yes, sample testing is available to ensure the performance and specifications of our motors match your application needs before production starts.
