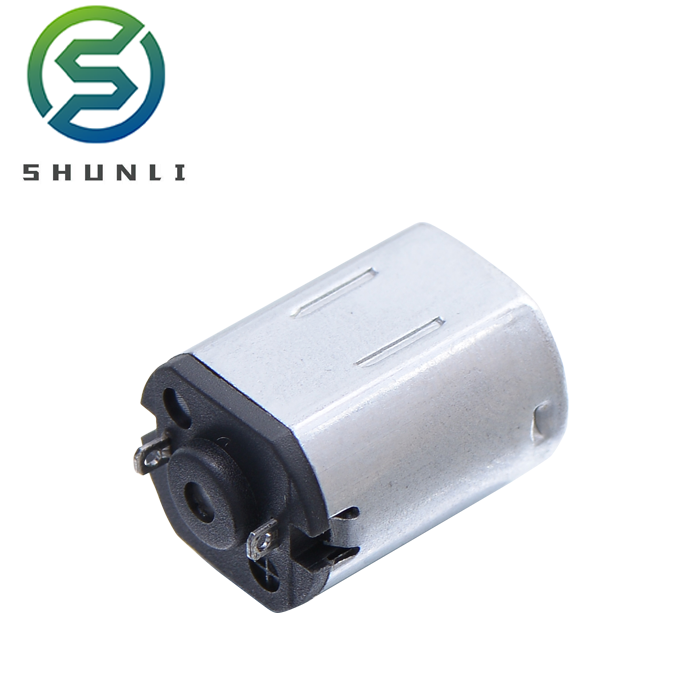

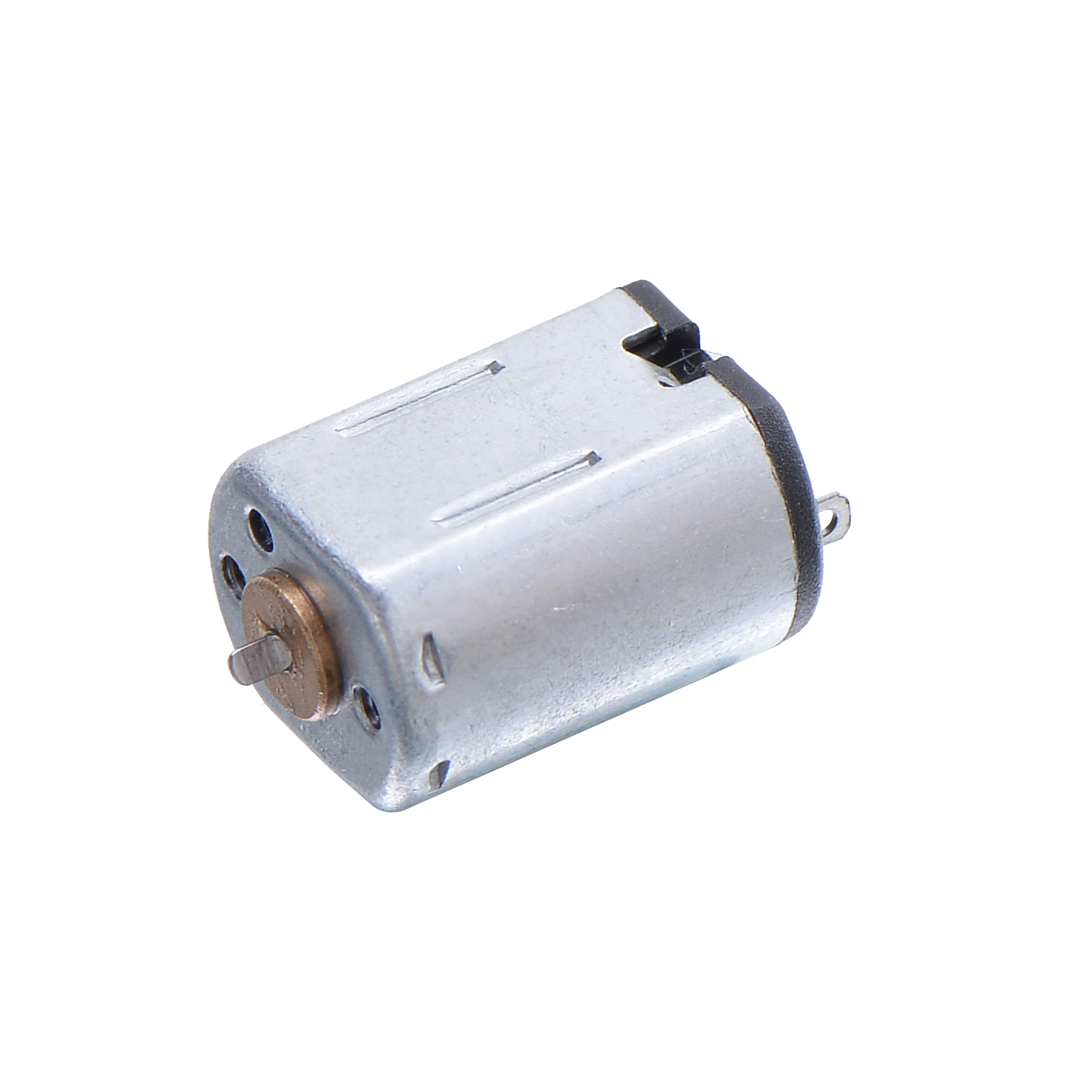

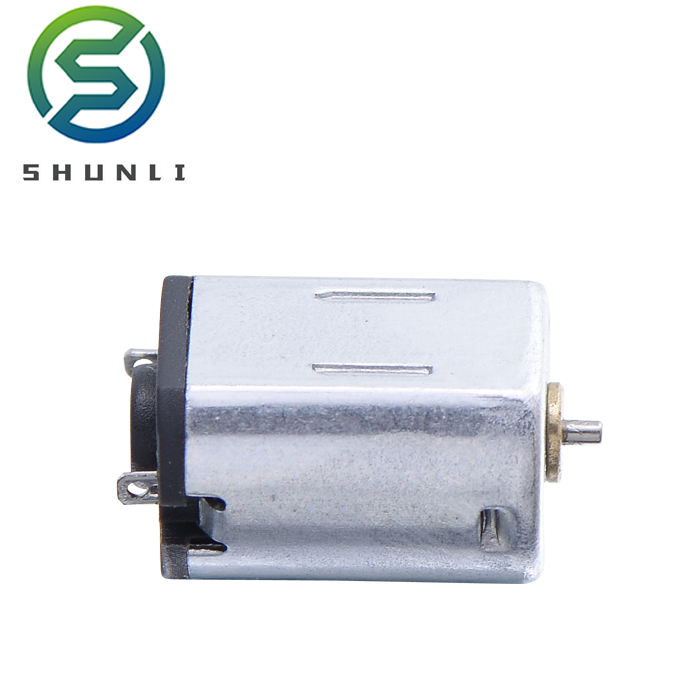

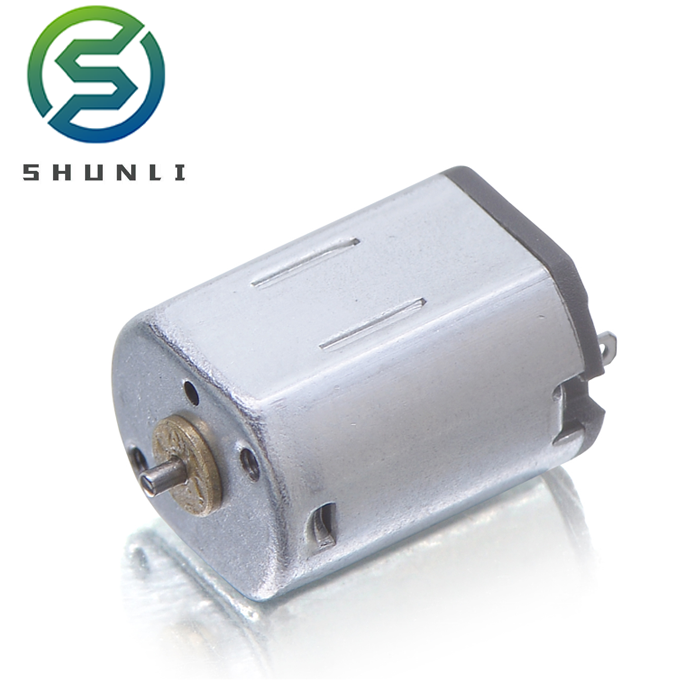

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

1 / 4

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Send Inquiry

Product Description

Promotion

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor Categories

Product Description

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor Technical Details

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA	2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Application

Certifications

Why Choose Us

1. Factory Experience

We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management system ensure a pleasant purchasing experience.

2. Quality Control

To guarantee quality, every step from incoming materials to final shipment is carefully checked. Quality is the core foundation of our development.

Our Services

We are gold seller and in possession of high credibility.

100% on-time delivery rate ensures your products arrive timely.

Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.

Timely reply: your message will be answered within 2 hours.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, allowing online payment via Master Card, Visa, etc. Customers can also pay through PayPal, T/T, and other traditional methods.

I cannot find a suitable motor on your website. Can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific mechanical and electrical requirements.

Do you have certificates for your motors?

Yes, we have CE, FCC, ISO, and other relevant certifications. If you have other specific certificate requirements, we can apply for them for you.

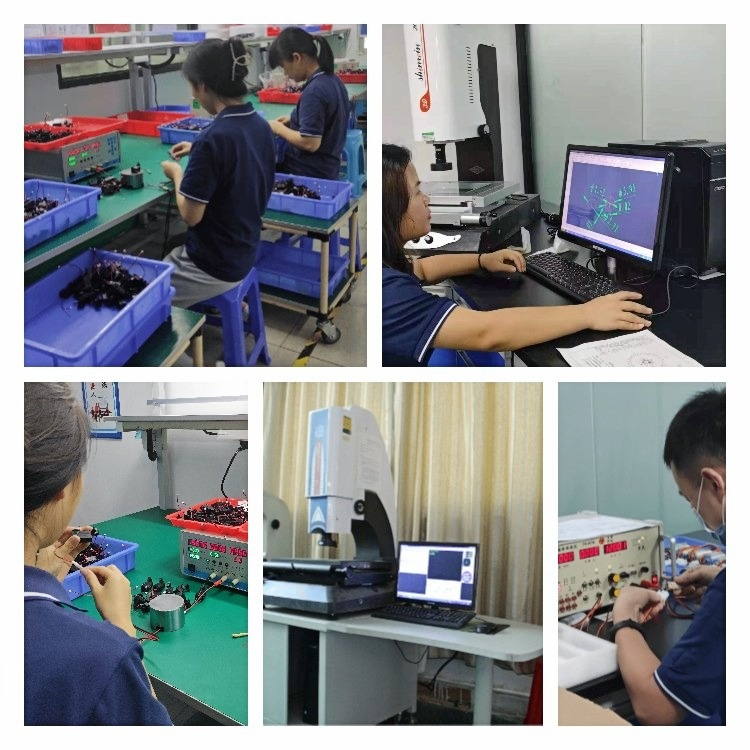

How is your Quality Control?

We have professional QA/QC inspection staff on every production line process. After finishing the motor assembly, we use testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

What are the typical applications of the SFF-N20VA series motor?

The SFF-N20VA series is widely applied in smart electronic locks, precision medical instruments, automatic valves, camera stabilizers, and miniature household electronics due to its compact size and high reliability.
