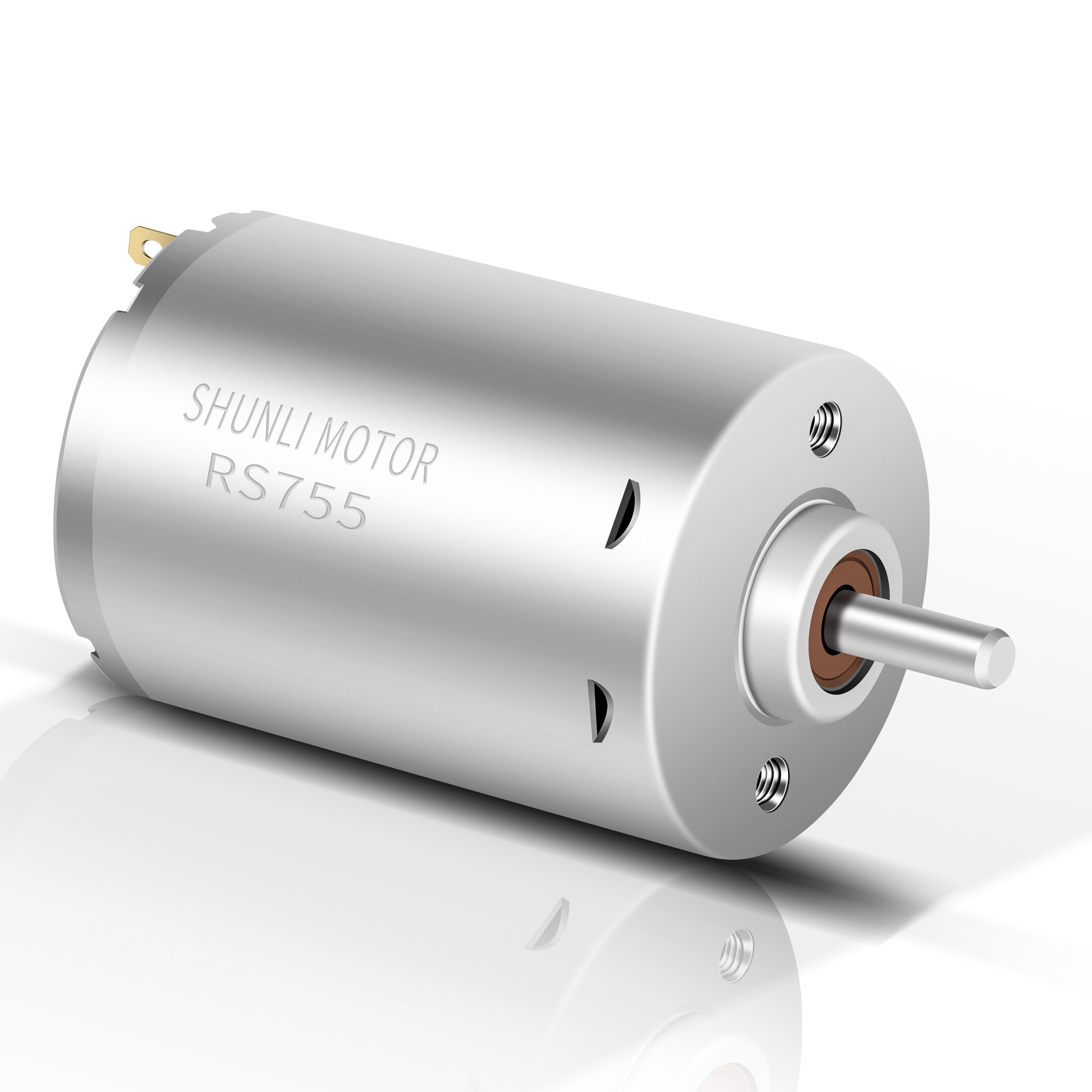

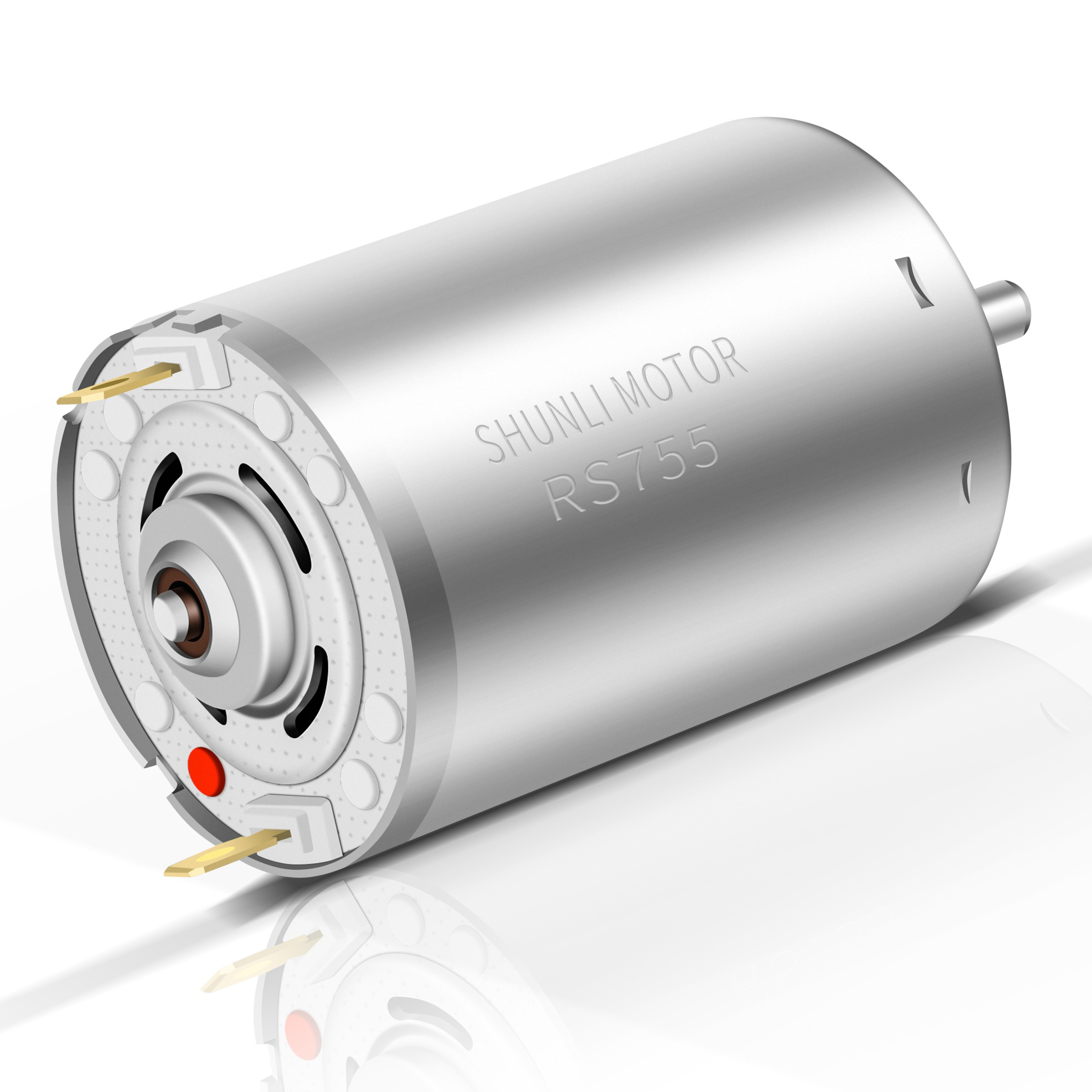

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1 / 4

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

powerfull 20000rpm rs 775 mini high speed 24 volt dc motor

💡 Motor Customized Specification, Please contact me.

Reference Drawing

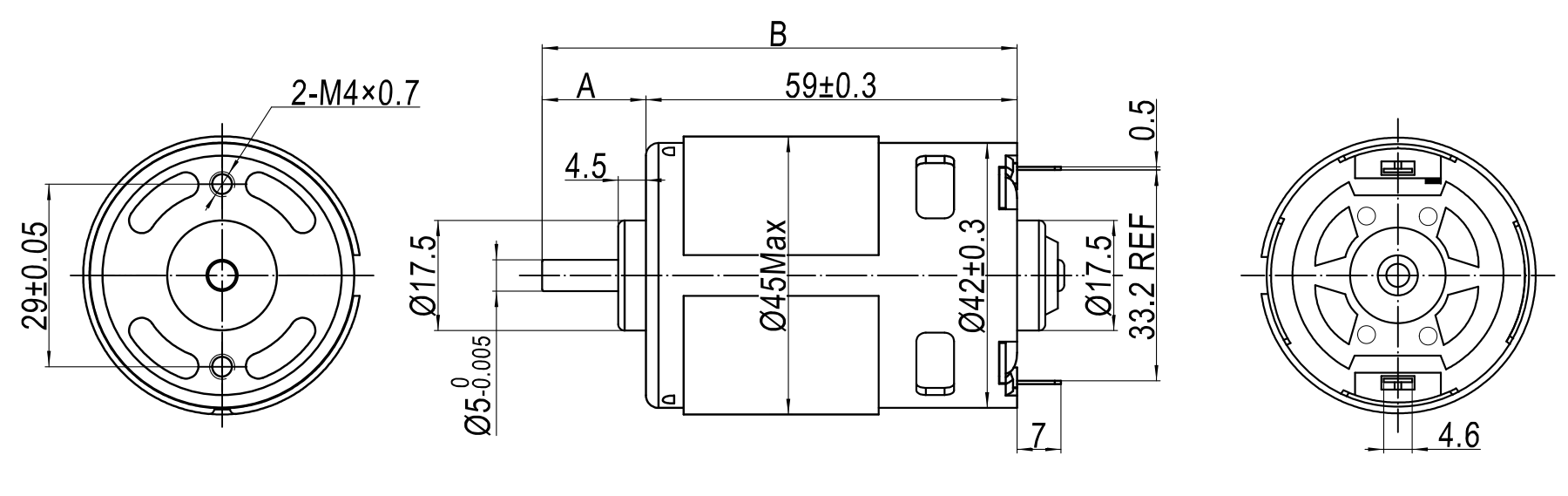

------ RS - 755 H

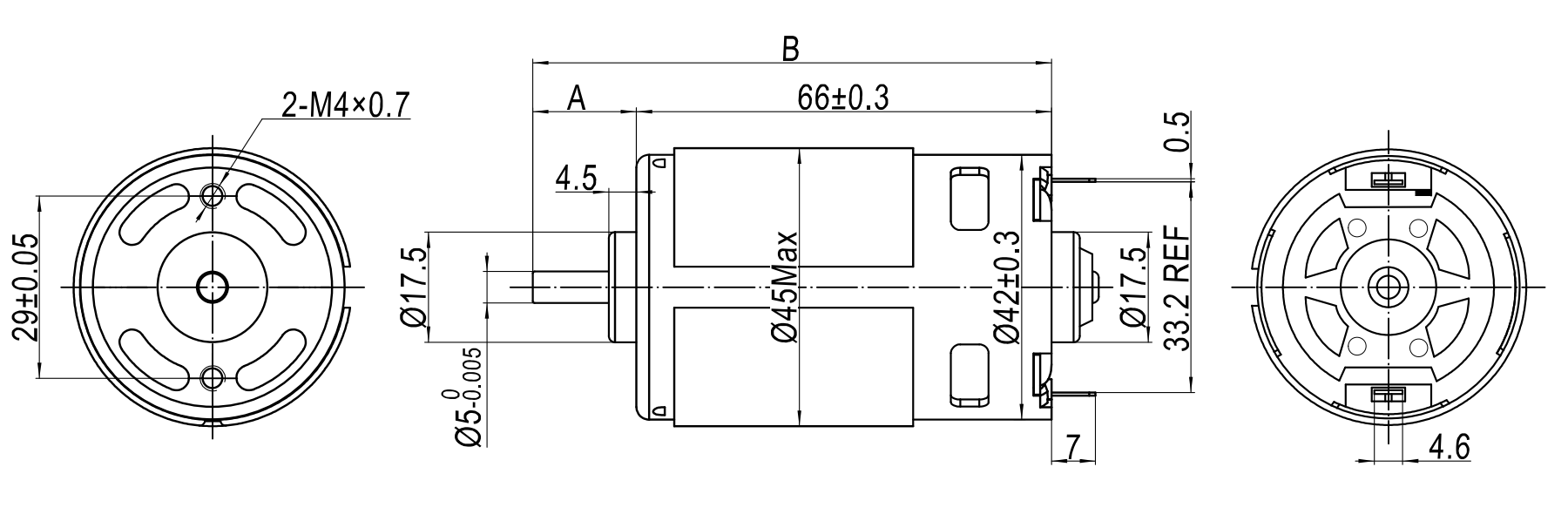

------ RS - 775 H

💡 The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Application

Certifications

Recommend Product

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up an online assurance order, which allows payment online via Master Card, Visa, etc. Customers can also pay with PayPal or T/T.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them for you.

How is your Quality Control?

We have professional inspection staff for every step of the production line. After completing assembly, we use specialized testing equipment to test the motors, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
