Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
1 / 5
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder
Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder

Shunli Customized 12v Mini Dc Brush Low Rpm Exoskeleton High Torque Arm Robot Joint Gears Motor With Encoder

Send Inquiry

Product Description

Product Presentation Banner
Product Dimensions and Details
Product Model GM37BM3525/3530/3540
Gearbox Length 25mm-40mm
Speed 13RPM-100RPM
Voltage 12V/24V/12V
Torque 0.25 N.m/1.2 N.m/0.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
Motor Performance Specifications

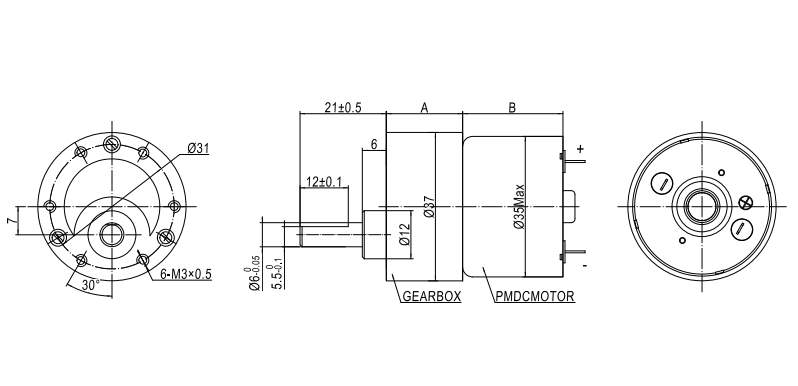

Motor Structure Diagram

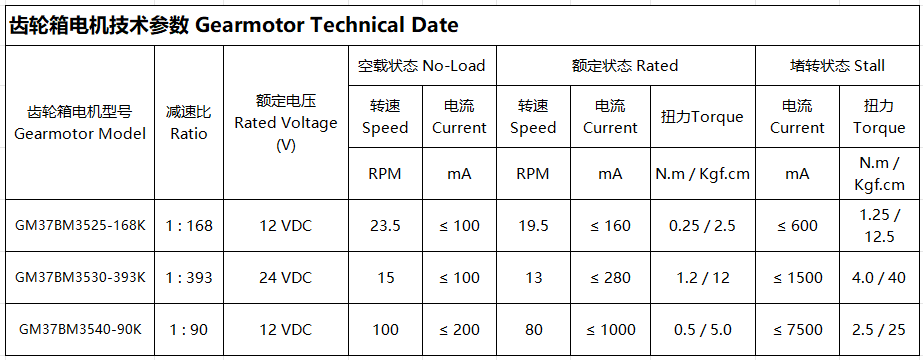

Technical Specifications Sheet
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q2: What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q5: How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q6: What information is needed to get an accurate quote for custom motors?
To provide you with the most accurate quotation, please provide your specific requirements regarding voltage, speed, rated torque, shaft dimensions, duty cycle, and estimated annual order quantity.
