WICCA Motor
1 / 5
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
The working voltage range is 3V to 12.0V. Depending on your model choice, the rated voltages are configured either at 3.0V or 4.5V for optimal performance.
This model operates on a working voltage of 3-12.0V with a rated voltage of 4.5V. It has a no-load speed of 100 rpm and a stall torque of 0.265 N.m.
This model operates on a working voltage of 3-12.0V with a rated voltage of 3.0V. It offers a no-load speed of 50 rpm and a stall torque of 0.393 N.m.

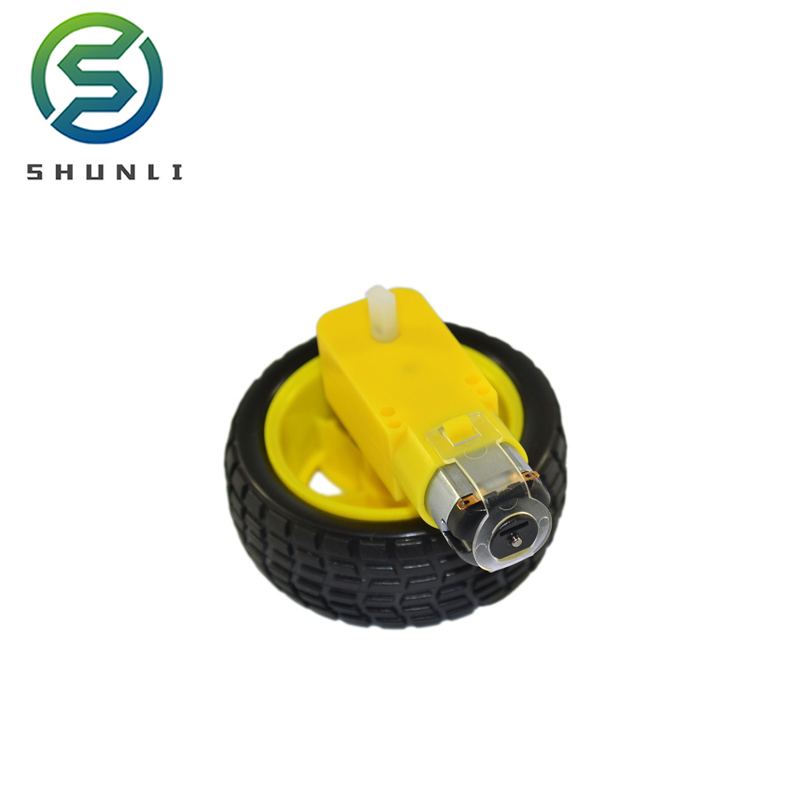

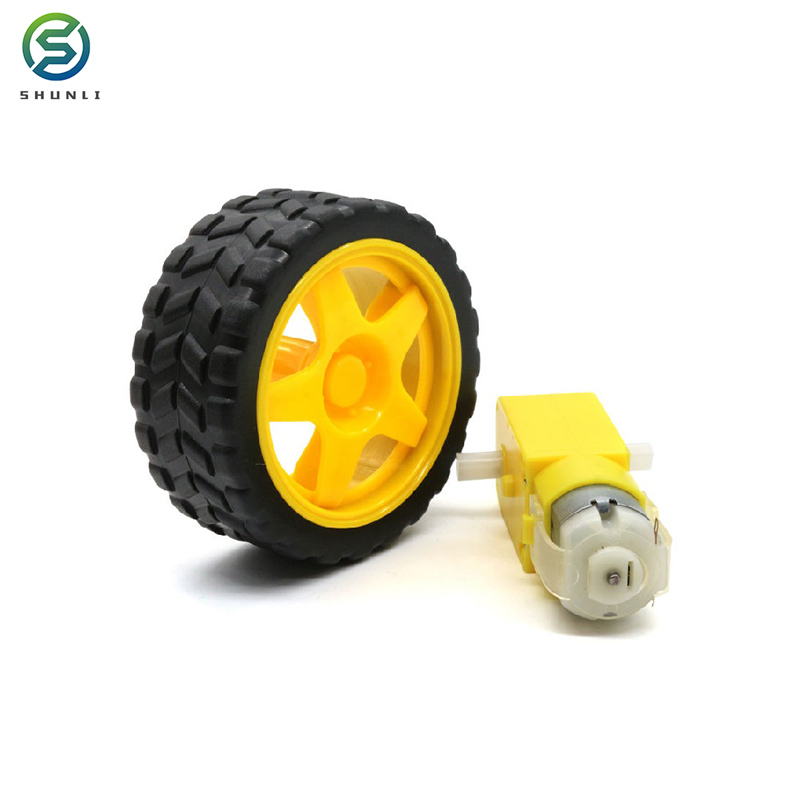

Yes, the motor is specifically designed for toy cars and matches compatible plastic wheels to build rolling chassis and robotic vehicles easily.
They are ideal for DIY smart toy cars, small robots, educational micro-controllers projects, obstacle avoidance cars, and other lightweight driving mechanisms.
