Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

Product Showcase

Product Specifications

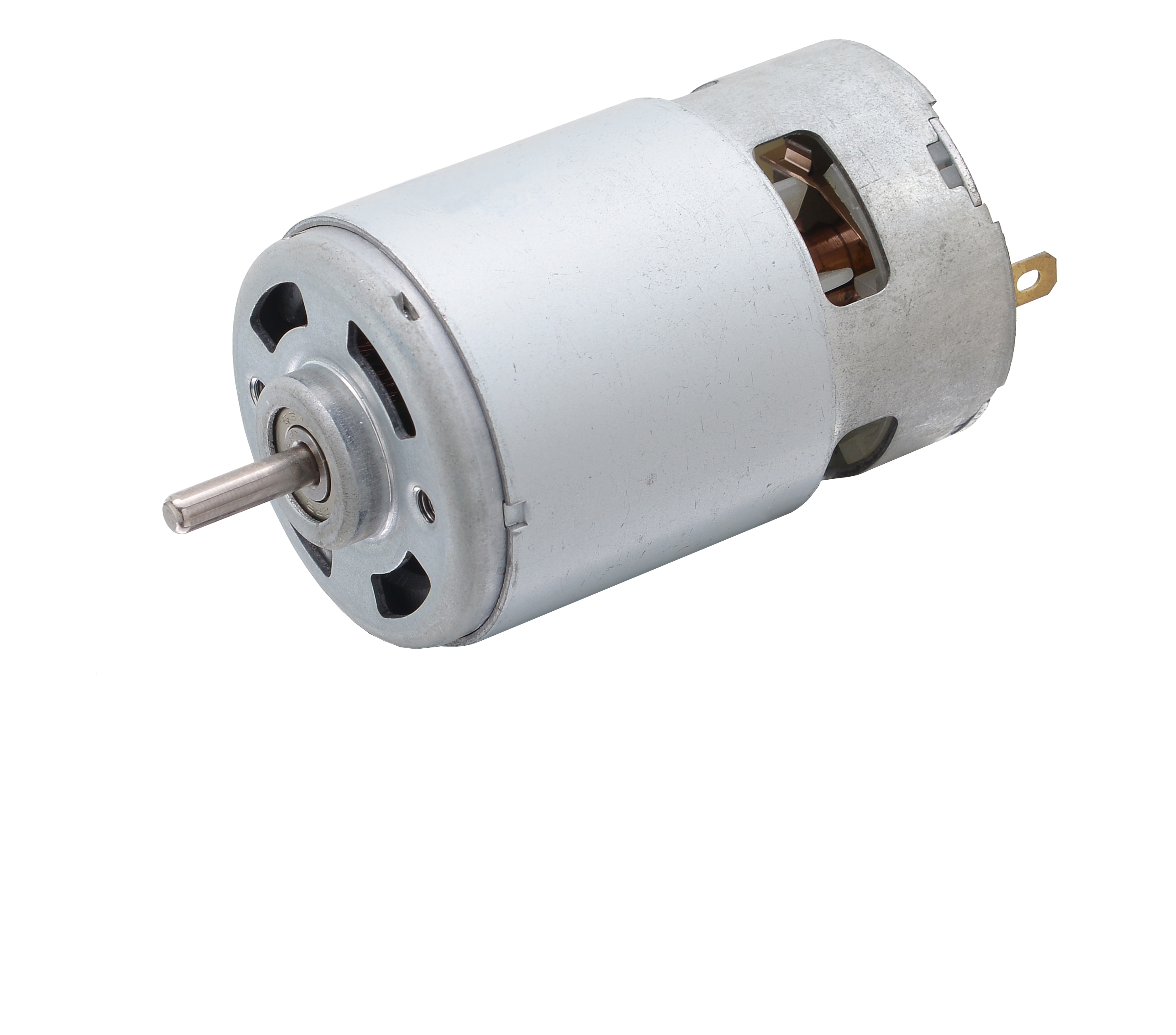

Product Dimensions
Product Model 7 Series
Motor Diameter 7 Series: 420.3 mm (Add protecting the magnetic ring: 45 mm)
Motor Length 755 motor: 59mm
775 motor: 66 mm
Motor Voltage 7.2-48VDC
Motor Speed 3000-20000RPM
Motor Shaft Standard 5mm D shaft (Motor Shaft Shape and Length Can Be Customized)

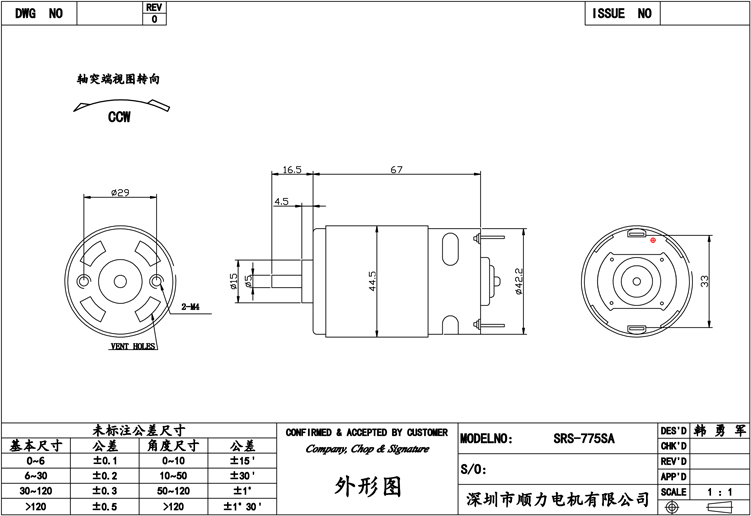

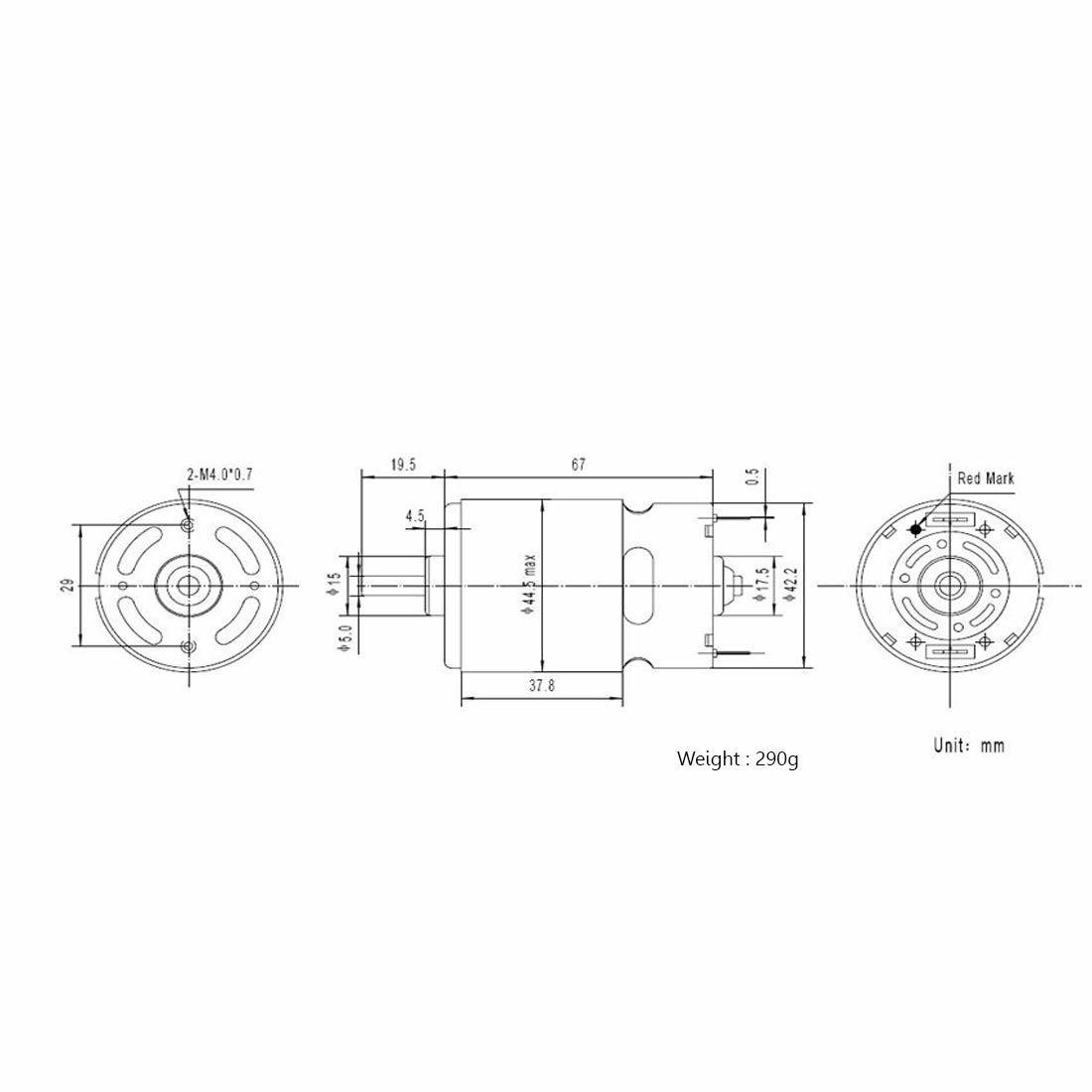

Technical Drawing

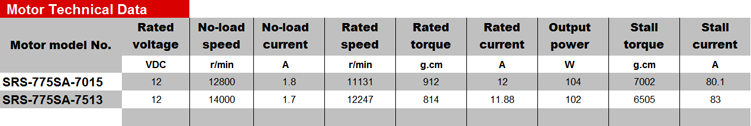

Performance Chart

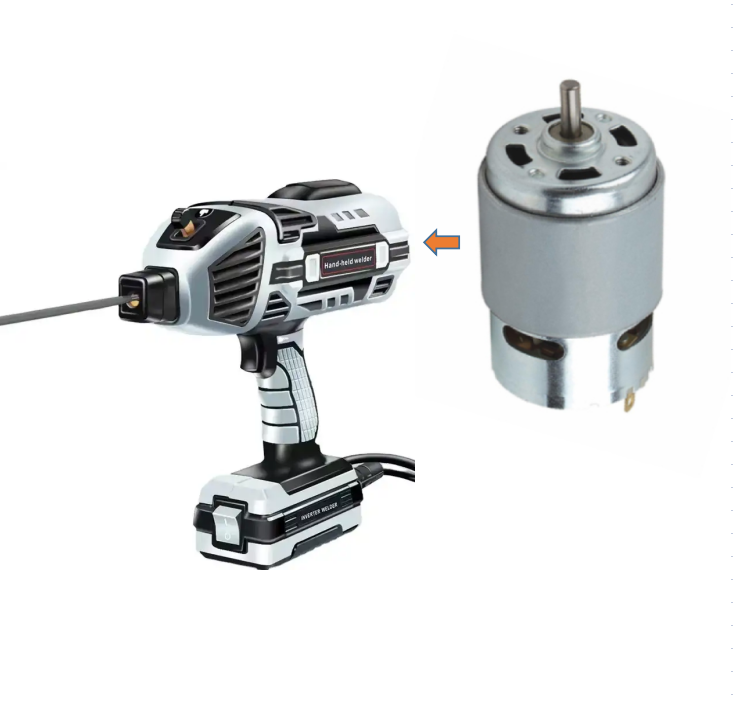

Product Details & Applications

Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5 Detail Image 6

Frequently Asked Questions

Q1: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q5: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q6: Can the motor shaft shape and length be customized?
A: Yes, the standard is a 5mm D shaft, but the motor shaft shape and length can be customized based on your requirements.
