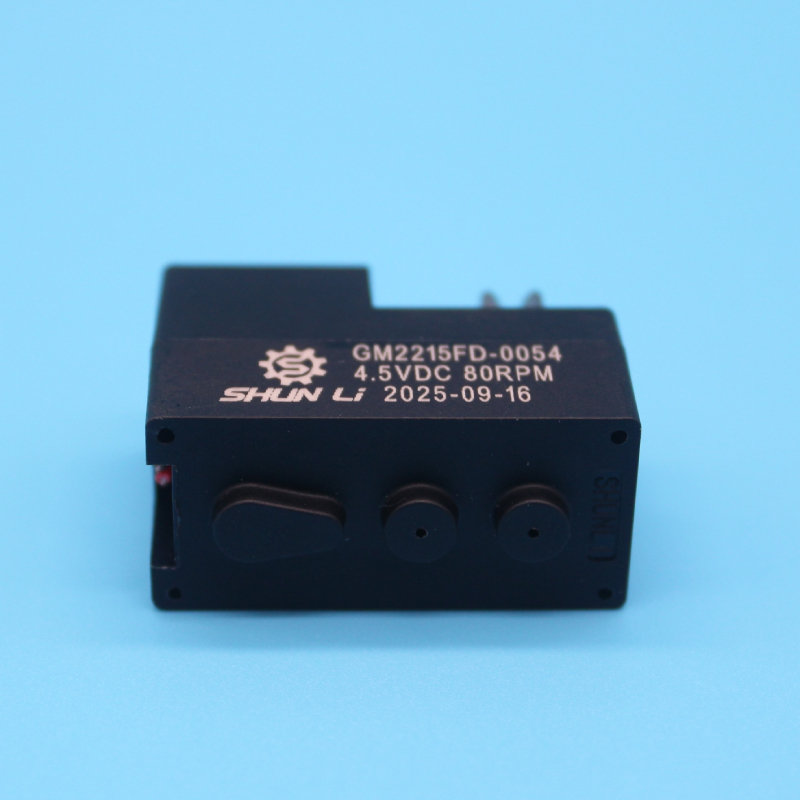

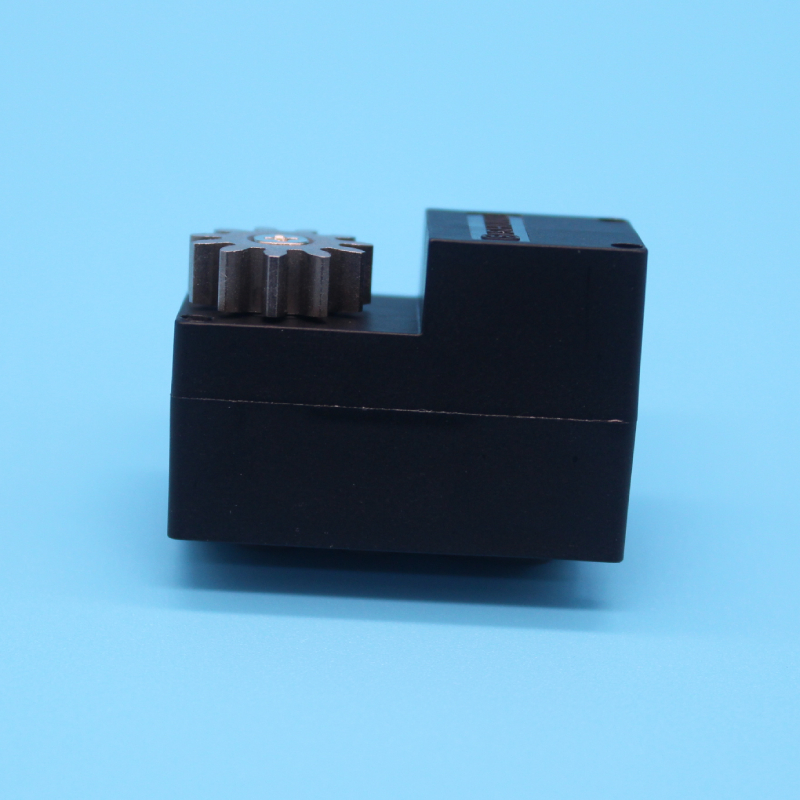

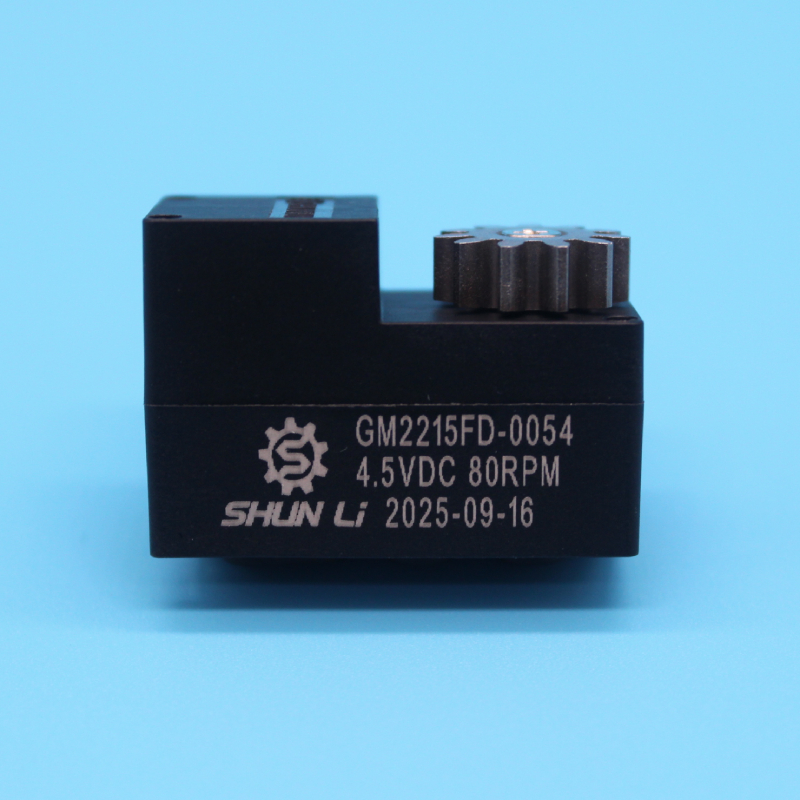

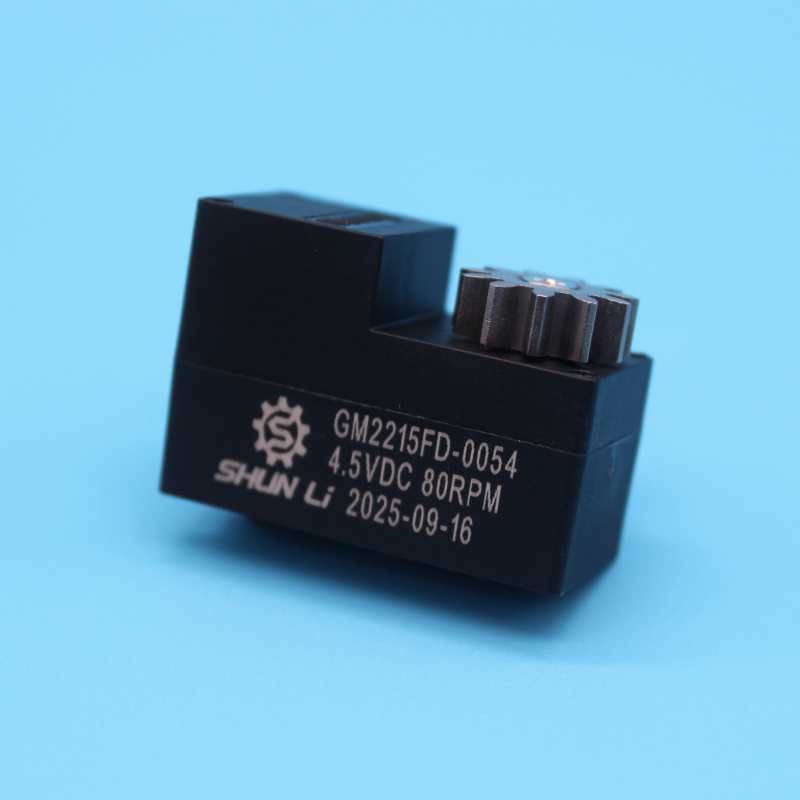

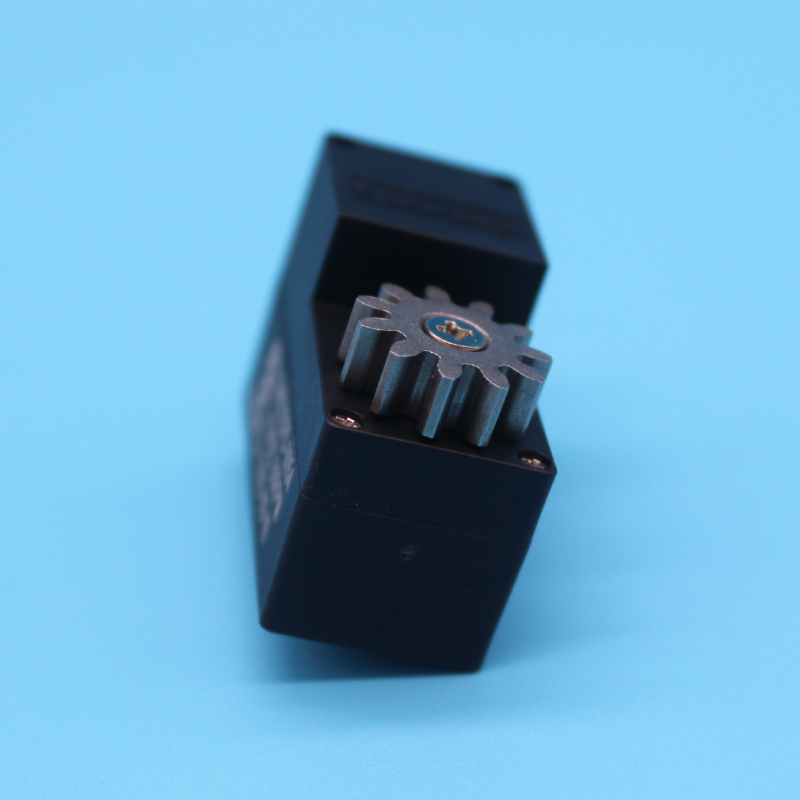

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Motor Customized Specification
Reference Drawings for customized requirements.

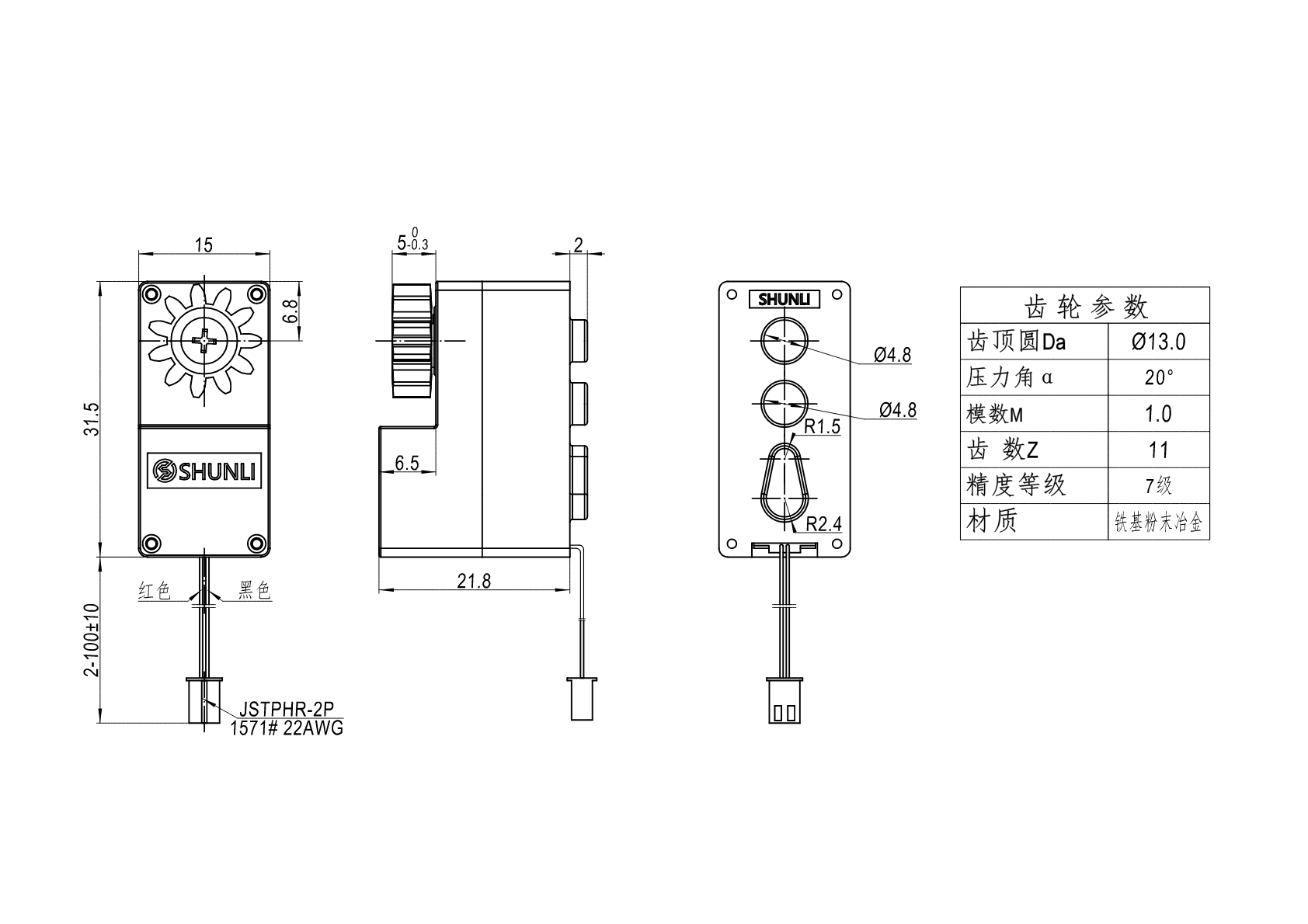

Reference Drawing - GM2215

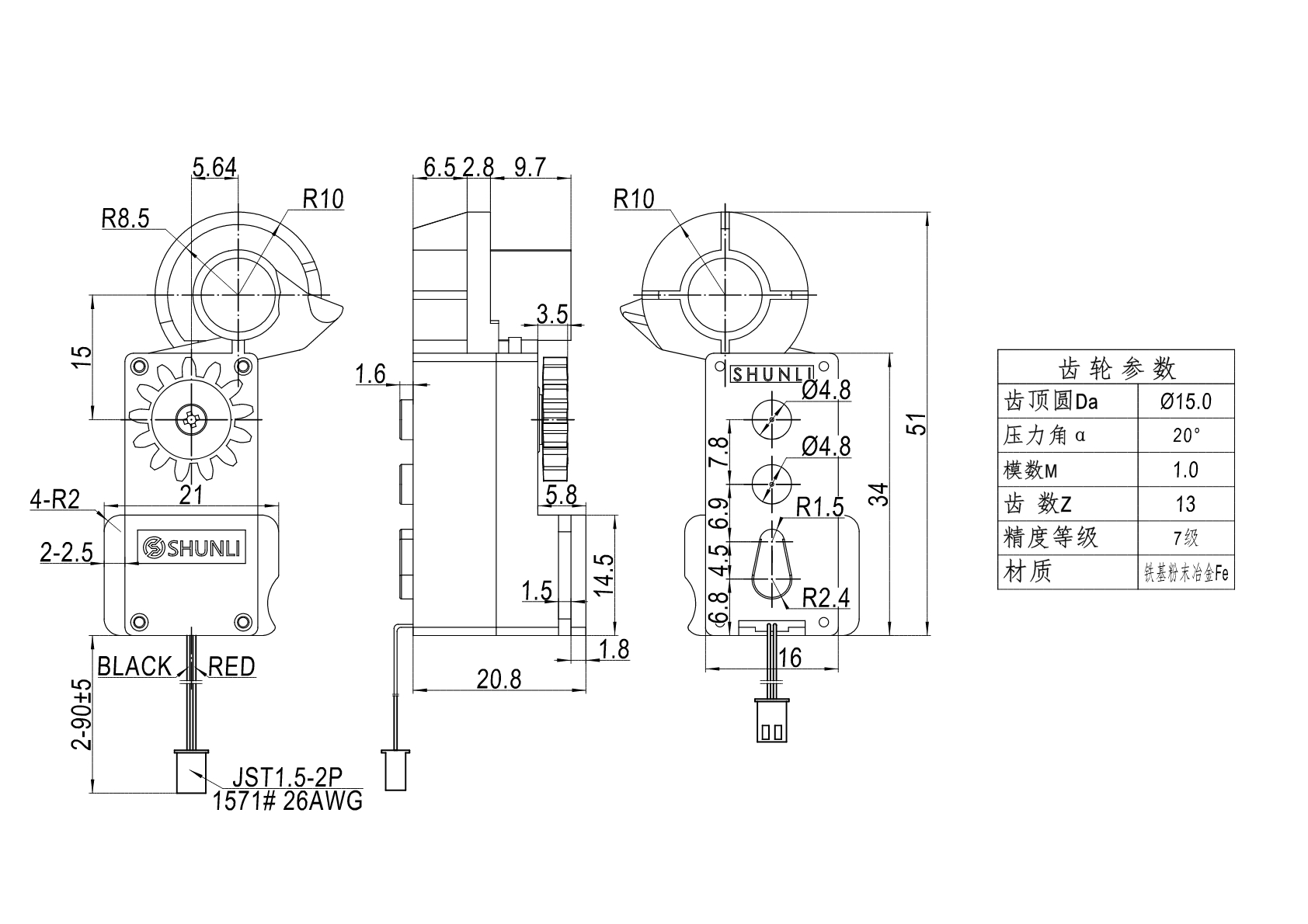

Reference Drawing - GM2219
Reference Datasheet
Gearbox Technical Data
Parameter
Specification Details
Ratio
199K / 241K / 265K
Max. Rated Torque
1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque
4 ~ 5 Kgf.cm
Gearbox Efficiency
45% ~ 60%
Gearmotor Technical Data
Gearmotor Model
Ratio
Rated Voltage
No-Load
Rated
Stall
Speed (RPM)
Current (mA)
Speed (RPM)
Current (mA)
Torque (mN.m / gf.cm)
Current (mA)
Torque (N.m / Kgf.cm)
GM2215FMN20-199K
1 : 199
4.5 VDC
52
≤ 50
40
≤ 120
18 / 180
≤ 350
0.18 / 1.8
GM2222FMN20-230K
1 : 230
58
≤ 78
49
≤ 135
24 / 240
≤ 450
0.2 / 2.0
GM2219FMN20-265K (Option A)
1 : 241
58
≤ 65
50
≤ 130
24 / 240
≤ 680
0.2 / 2.0
GM2219FMN20-265K (Option B)
1 : 241
62
≤ 75
51
≤ 140
35 / 350
≤ 750
0.22 / 2.2
FAQ
1. Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We accept payment online with credit cards (Visa, MasterCard, etc.), PayPal, and T/T wire transfer.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them.
5. Q: How is your Quality Control?

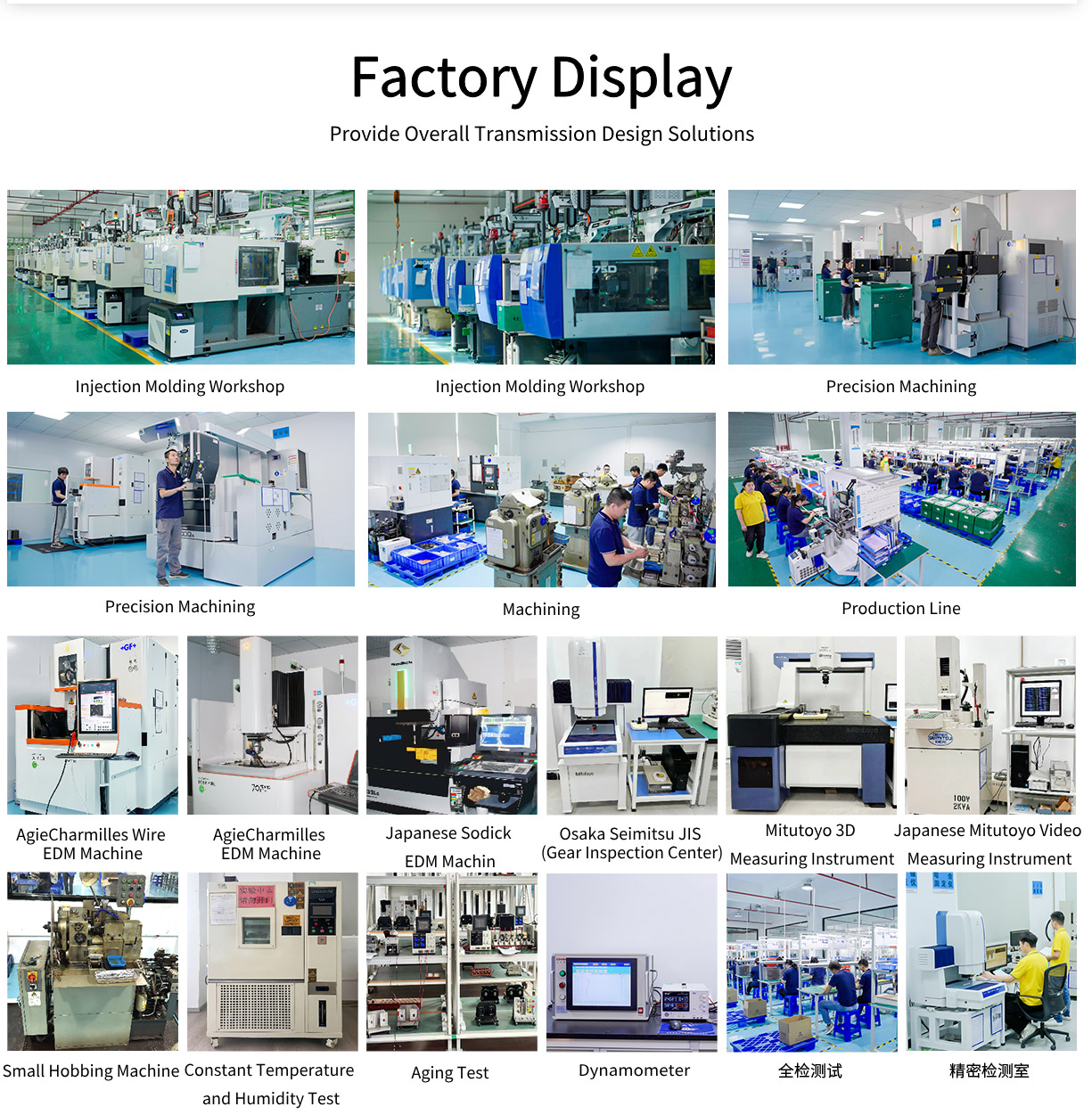

A: We have professional checking staff on every production line process. After finishing the whole motor, we use standard quality testing machines to test, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
6. Q: What is the typical lead time for custom samples?
A: Standard custom samples usually take 7-10 working days, depending on the specification complexity and material availability.
