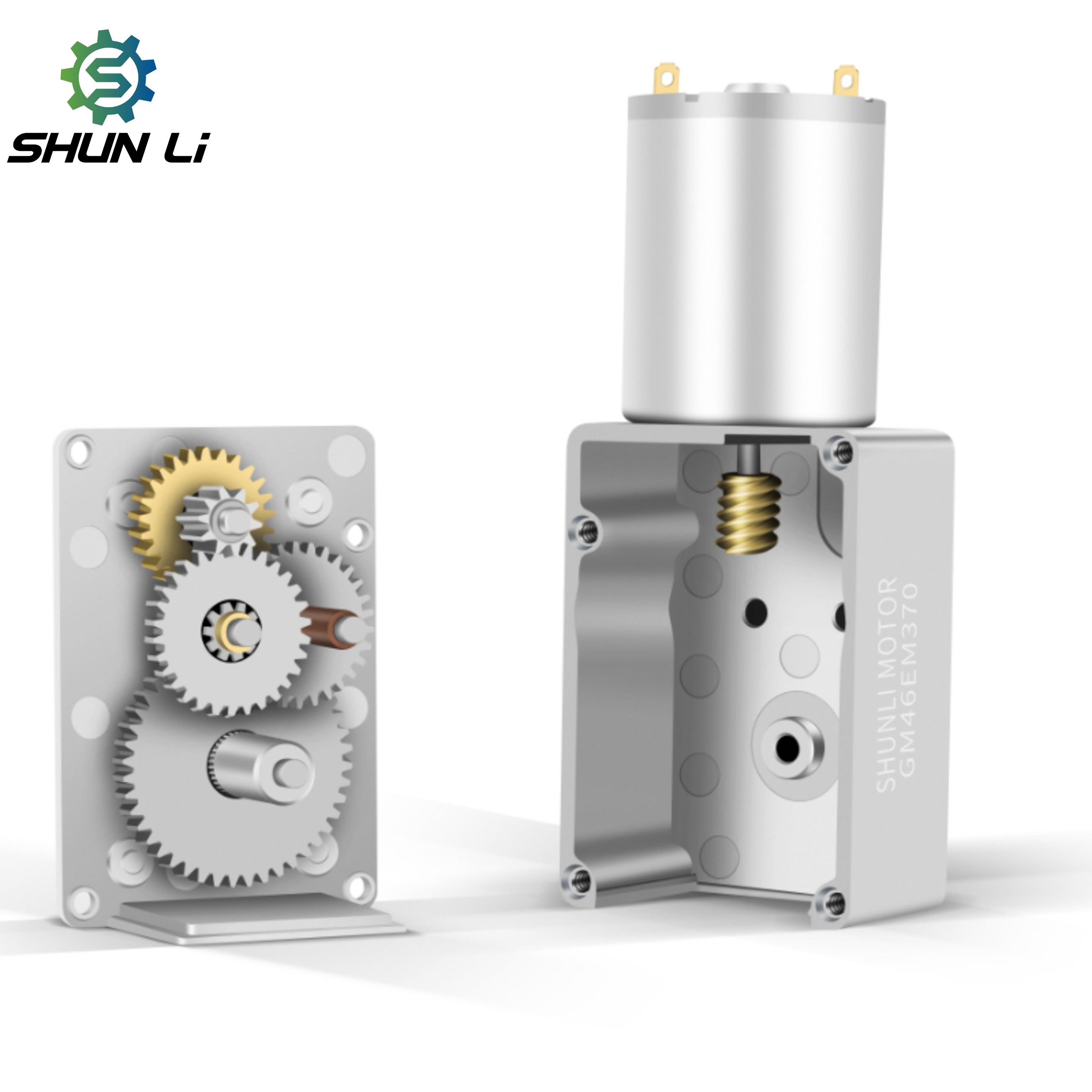

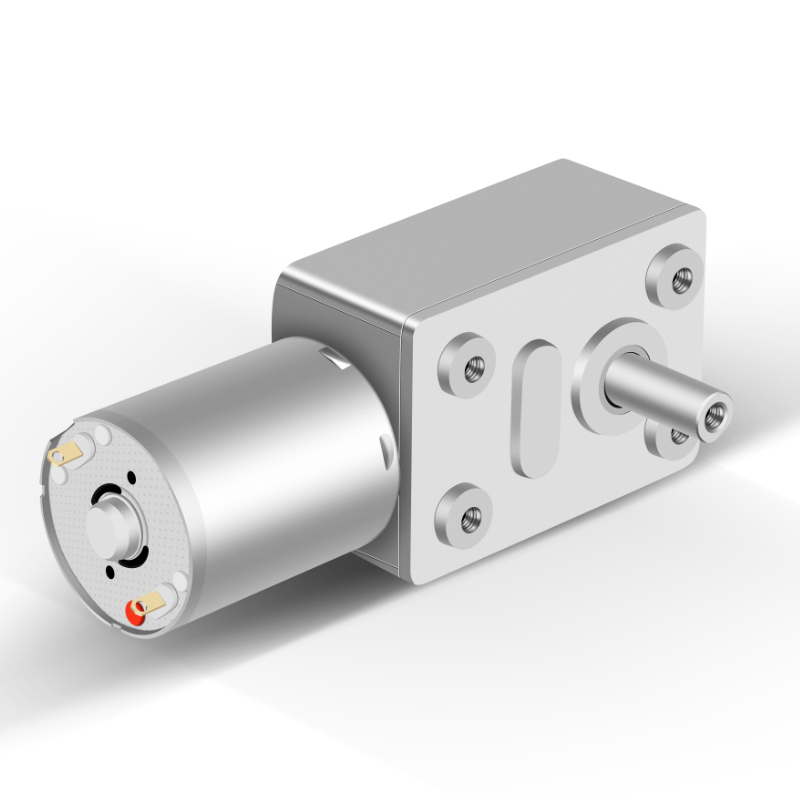

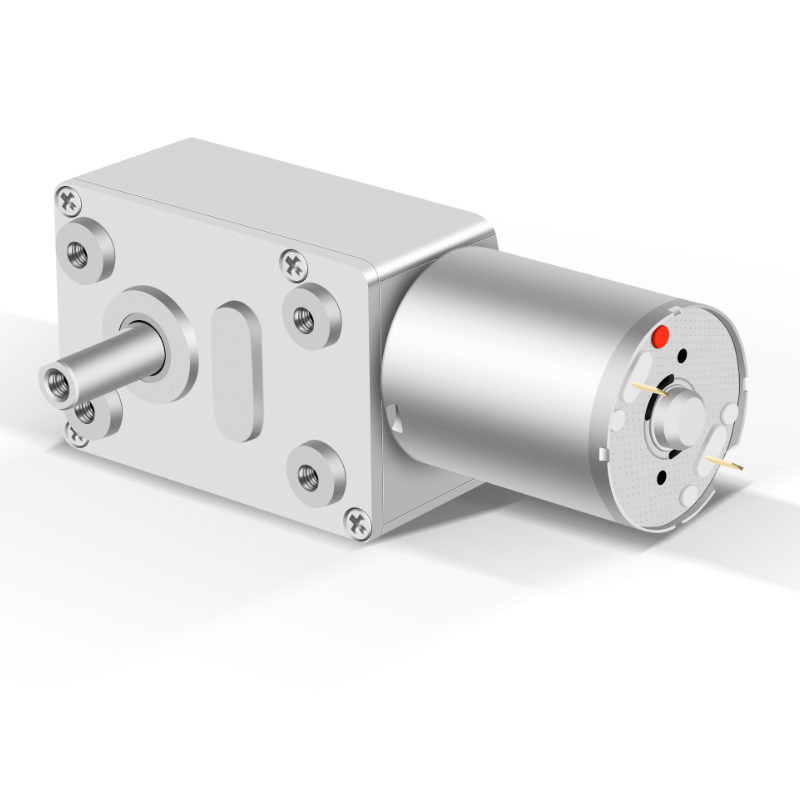

Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
1 / 4
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine
Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine

Shunli Customized Manufacturer 12v 24v Gearbox 25KG Micro Worm Gear Motor With Micro Dc Gear Motor Worm for Vending Machine

Send Inquiry

Product Description

Product Presentation

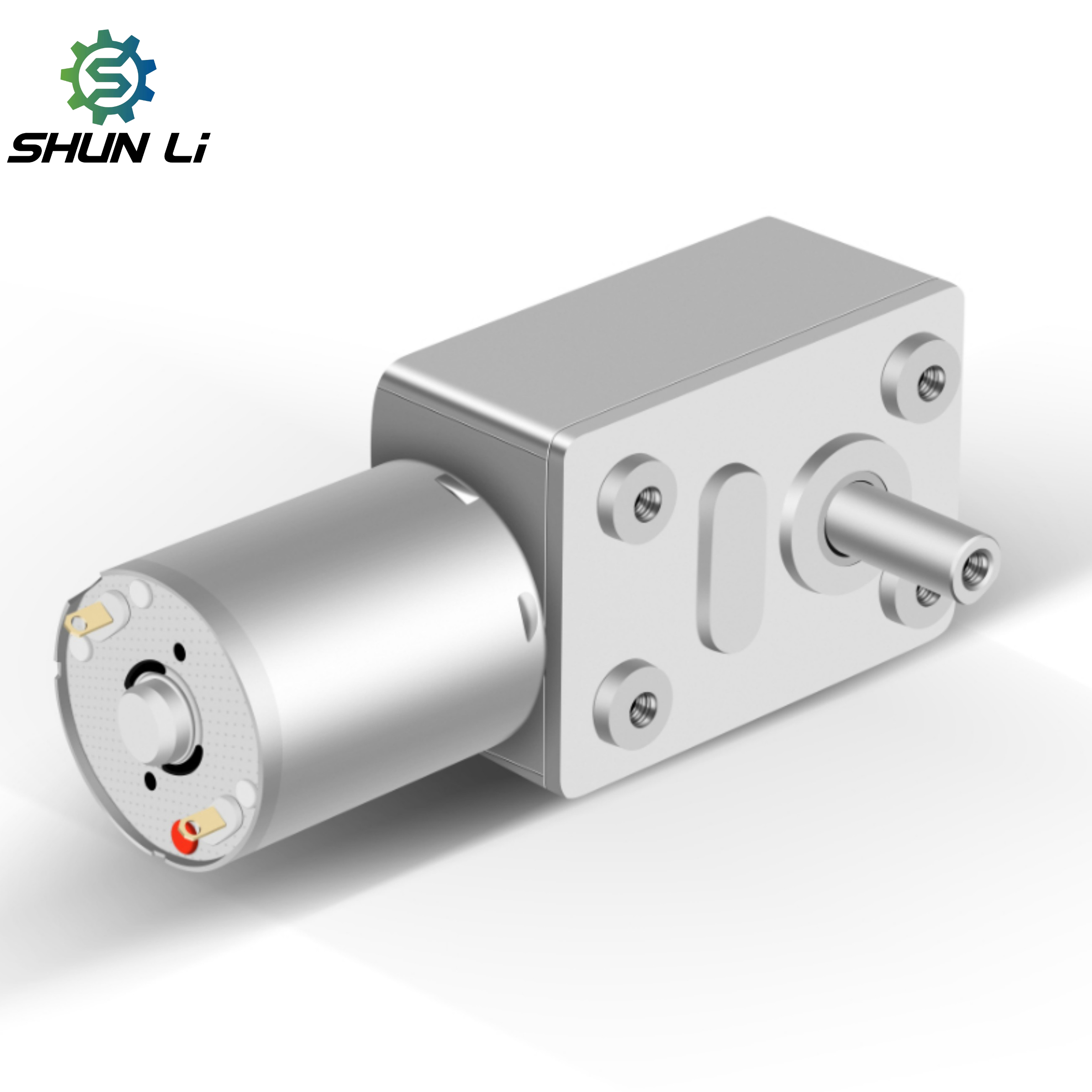

Product Details
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

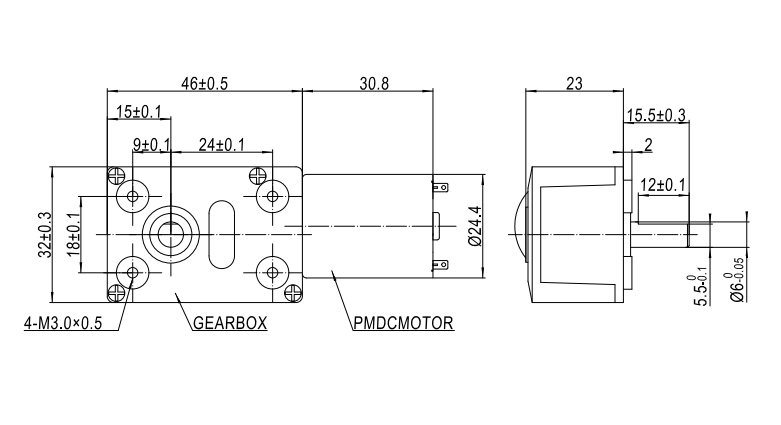

Technical Specifications and Dimensions

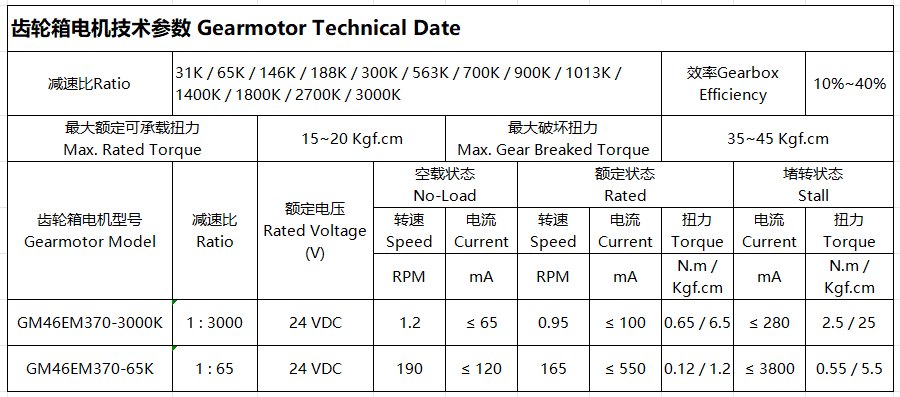

Performance Data Curve
Motor Details View 1
Motor Details View 2
Motor Details View 3
Motor Details View 4
Motor Details View 5
Motor Details View 6
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a manufacturer. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up online assurance orders for new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, or other convenient methods.
3. I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. How is your Quality Control?
We have professional quality inspectors on every production line process. Once the complete motor is assembled, we use testing equipment to verify performance, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6. Can the gearbox length and speed parameters be customized?
Yes. The gearbox length (standard 46±0.5MM), speed (ranging from 1.2RPM to 190RPM), and other transmission dimensions can be customized to fit your requirements.
