6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

Motor Customized Specification

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

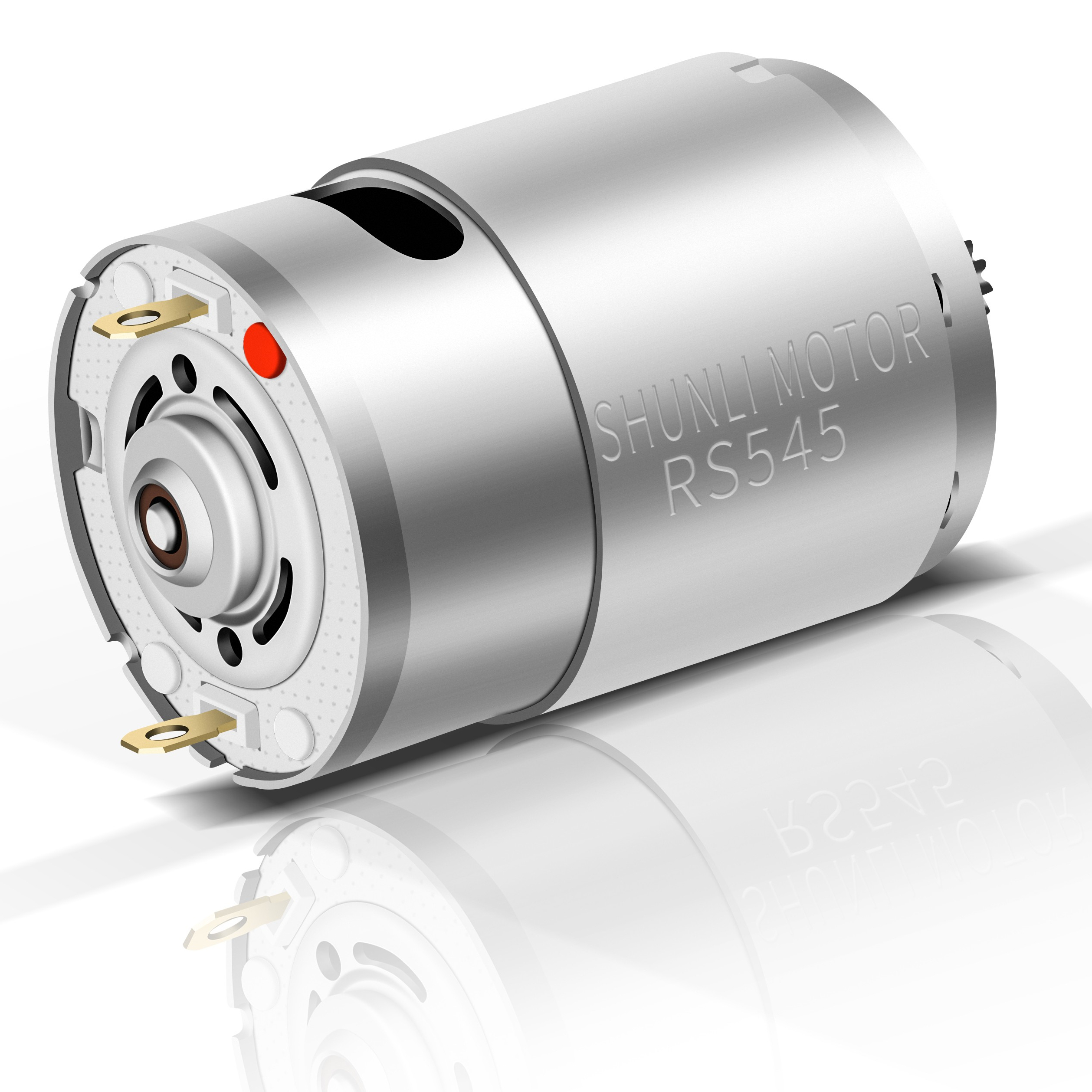

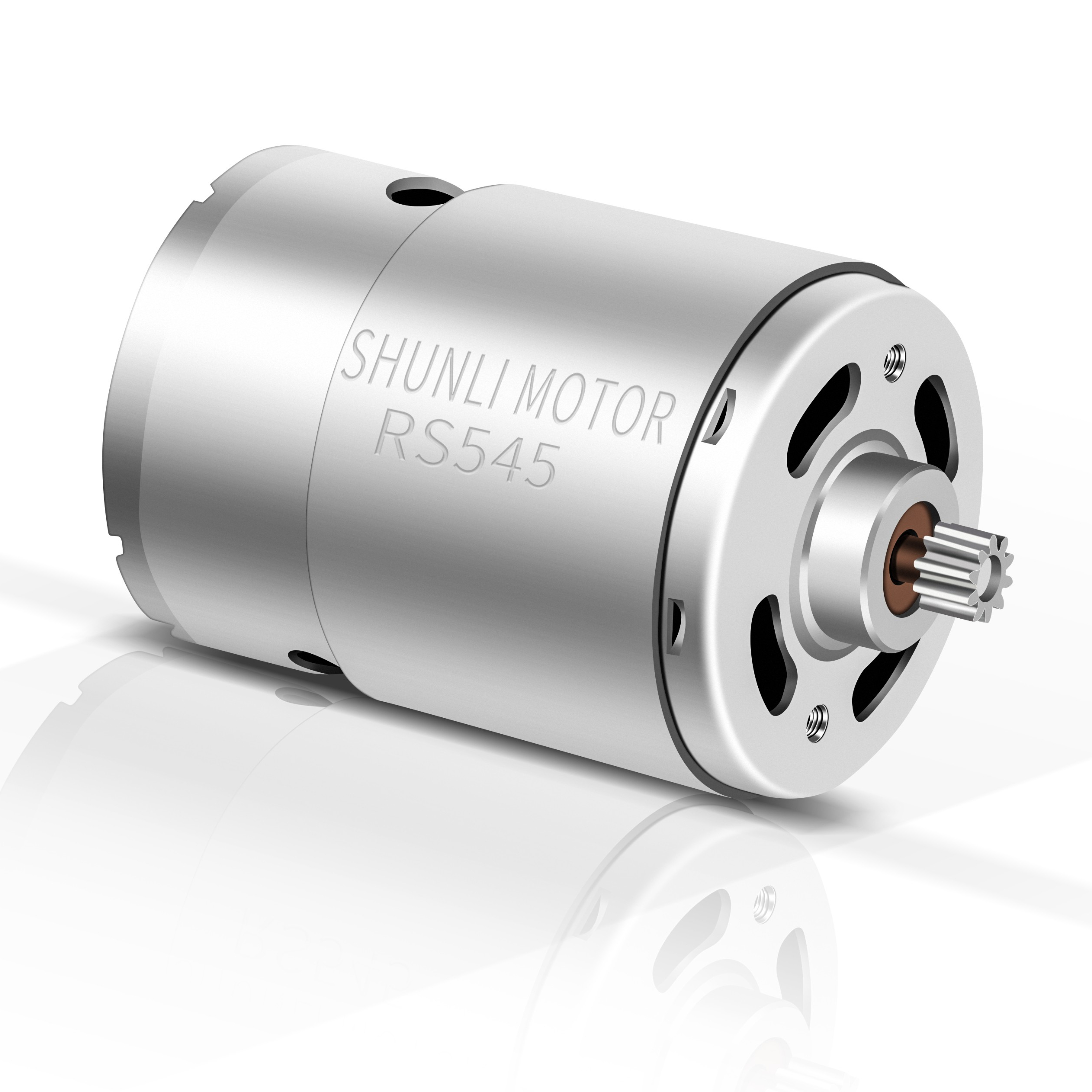

------ RS - 545 A

Frequently Asked Questions (FAQ)

What voltage ranges are supported by these RS 550/545/555 series DC motors?

The operating range typically spans from 6.0V to 24.0V DC. Specific configurations such as 12VDC and 24VDC nominal voltage models are available to meet varied application needs.

What are the maximum speed capabilities of these high-RPM motors?

Depending on the model and voltage input, these PMDC motors can achieve nominal speed values ranging from 4,500 RPM up to 16,000 RPM, with maximum speed levels reaching up to 30,000 RPM.

What typical applications are these DC motors suitable for?

These motors are widely utilized in applications requiring high RPM and robust performance, including power tools, household appliances, automation devices, and customized machinery solutions.

Are the technical parameters such as shaft size and performance customisable?

Yes, we support customized technical specifications tailored to your engineering designs, including voltage, speed, current, output power, and physical dimensions.

What is the output power range of the RS-550H and RS-555H models?

The RS-550H has a rated power output ranging from 10.6W to 40.36W. The RS-555H offers a rated power output ranging from 12.09W to 15.35W depending on target specifications.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
