13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
1 / 5
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

Send Inquiry

Product Description

DC Motor Overview

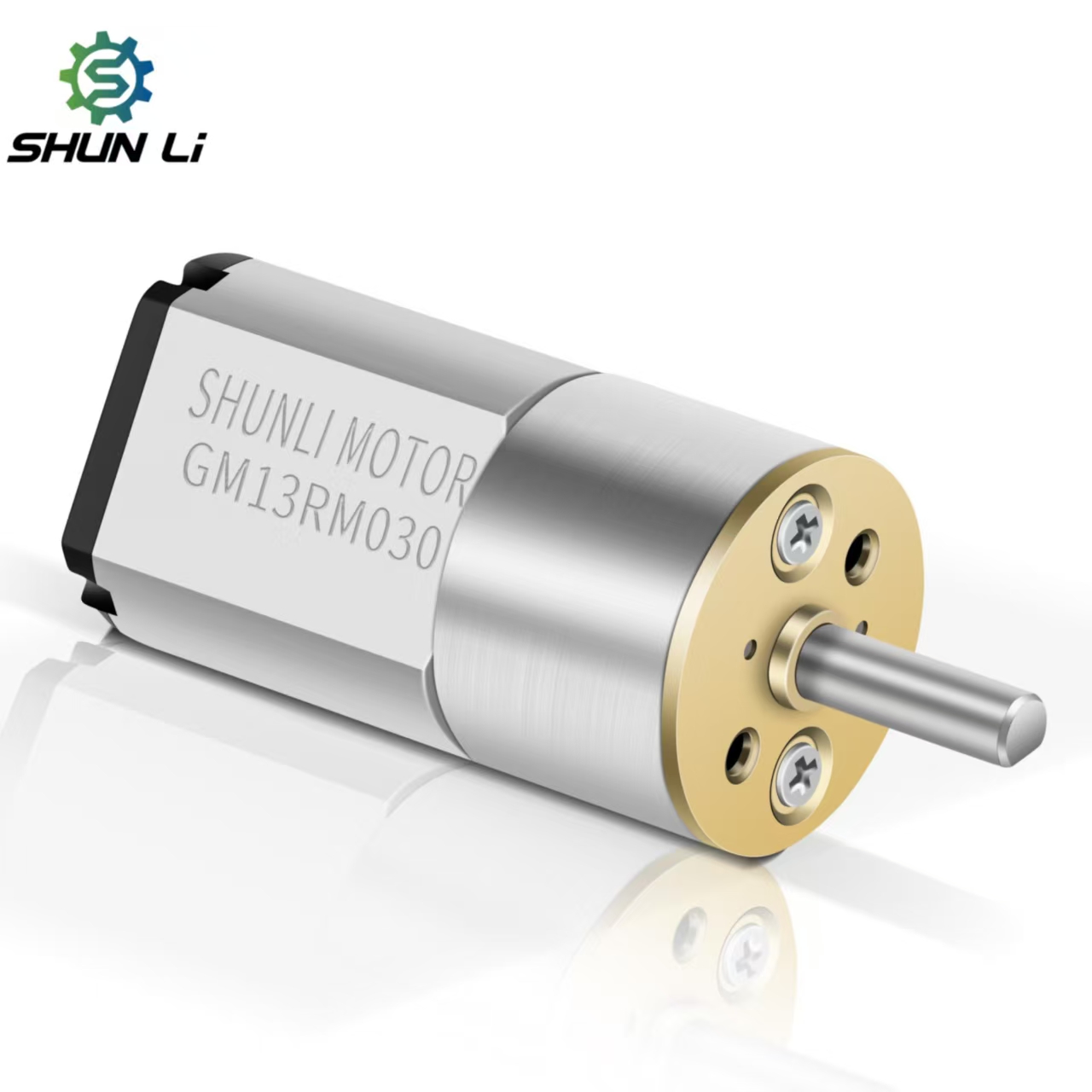

Micro Gear Motor Dimensions
Product Model GM13RM030/050
Gearbox Length 21±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Support Customization The Transmission Dimensions And Motor Parameters Can Be Customized

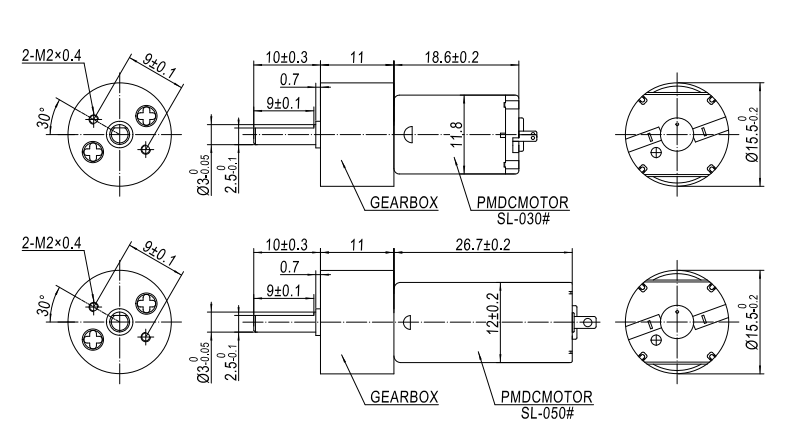

Motor Technical Specifications

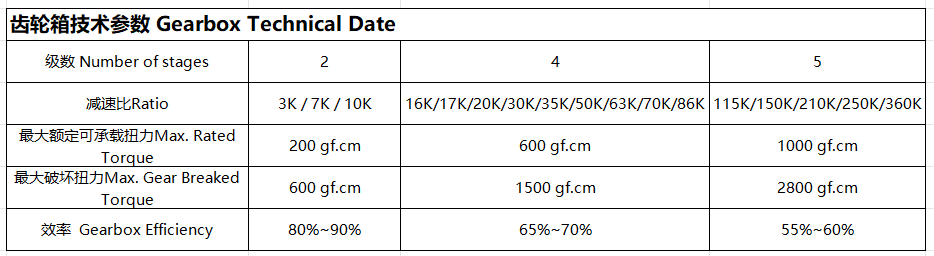

Motor Application Structure

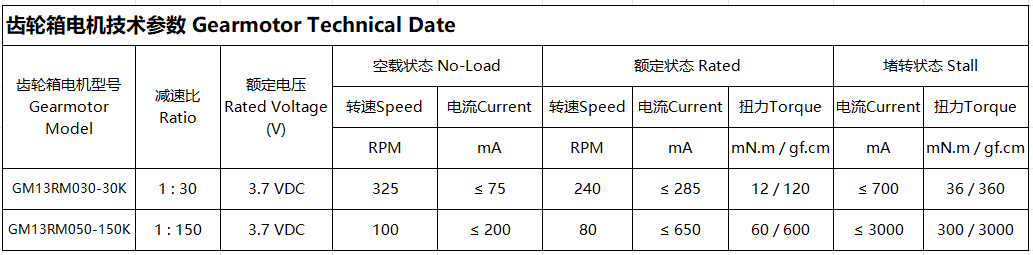

Motor Load Characteristics
Production Showcase 1
Production Showcase 2
Production Showcase 3
Quality Check 1
Quality Check 2
Packaging and Shipment

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We support flexible payment terms. Payments can be processed online using Master Card, Visa, etc., as well as via PayPal or T/T bank transfers.
If I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor based on our customer's specific technical parameters and requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant industry certifications. If you need any specific certificates, we can apply for them on your behalf.
How is your Quality Control process managed?
We maintain strict quality control with professional checking staff stationed at every process of the production line.
What testing machines do you use for product verification?
Upon completion, each motor is thoroughly tested using specialized QA equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
